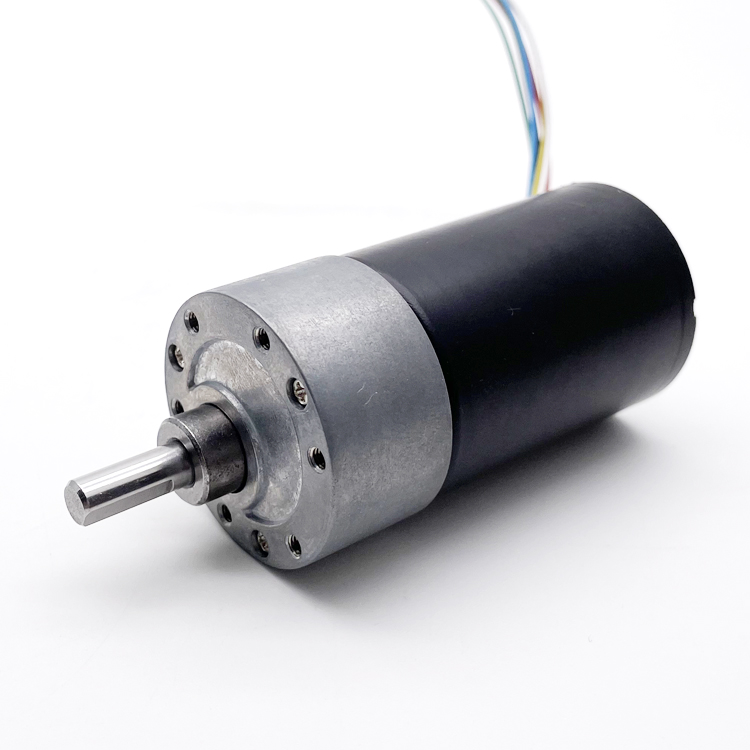

Fluxon Motor
Fluxon Motor
Reduction Ratios: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810
| Model | Rated Voltage | Rated Speed | Output Power | Rated Torque | Stall Torque |
|---|---|---|---|---|---|
| TEC3650-2465 | 24VDC | 5400 r/min | 11.5W | 200 g.cm | 1150 g.cm |
| TEC3650-2440 | 24VDC | 3200 r/min | 6.6W | 200 g.cm | 1000 g.cm |
| TEC3650-1245 | 12VDC | 3500 r/min | 8.3W | 230 g.cm | 820 g.cm |
| Reduction Ratio | 6 | 10 | 30 | 44 | 56 | 90 | 169 | 270 | 506 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 19 | 19 | 21.5 | 24 | 24 | 24 | 26.5 | 26.5 | 29 |
| No-load Speed (rpm) | 1000 | 650 | 215 | 145 | 110 | 70 | 38 | 24 | 12.5 |
| Rated Torque (kg.cm) | 0.7 | 1.2 | 3.6 | 5.2 | 6.5 | 10 | 10 | 10 | 10 |
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Business Machines | ATM, Copiers, Scanners, Vending Machines, Printers |
|---|---|
| Food & Beverage | Blenders, Coffee Machines, Juicers, Ice Makers |
| Lawn & Garden | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
| Home Tech | Air Purifiers, Washers, Smart Metering, Floor Care |
ISO9001, SGS, National high-tech enterprises, etc.
Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools. Our products are dependable and long-lasting, backed by years of experience. We export 98% of our output worldwide.
Key Partners: NIKE, FLEXTRONICS, STANLEY, etc.
Shipping Times:
"Excellent quality, better price, good service, and on time delivery."
