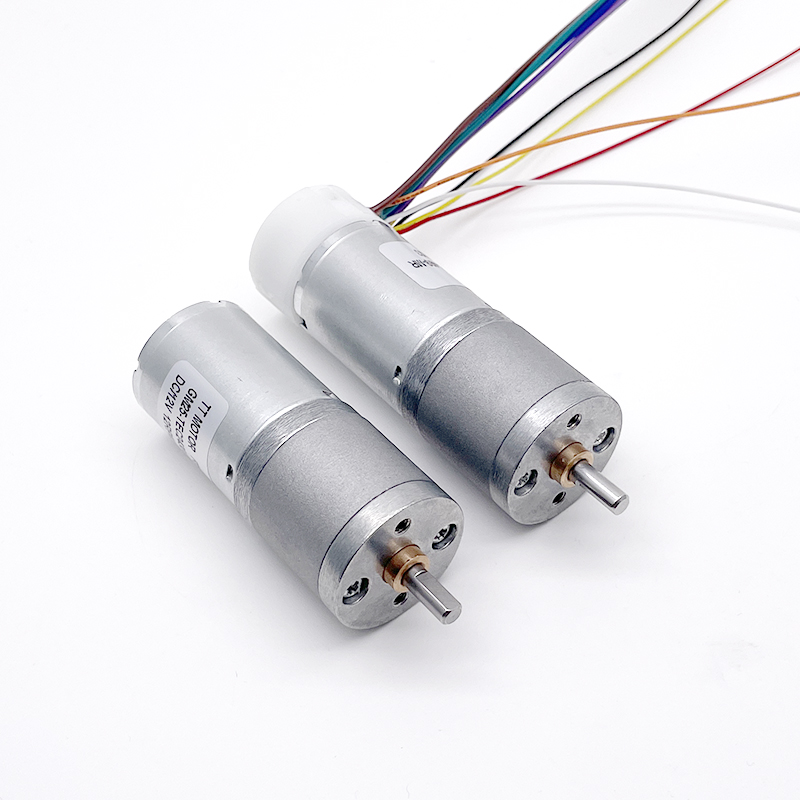

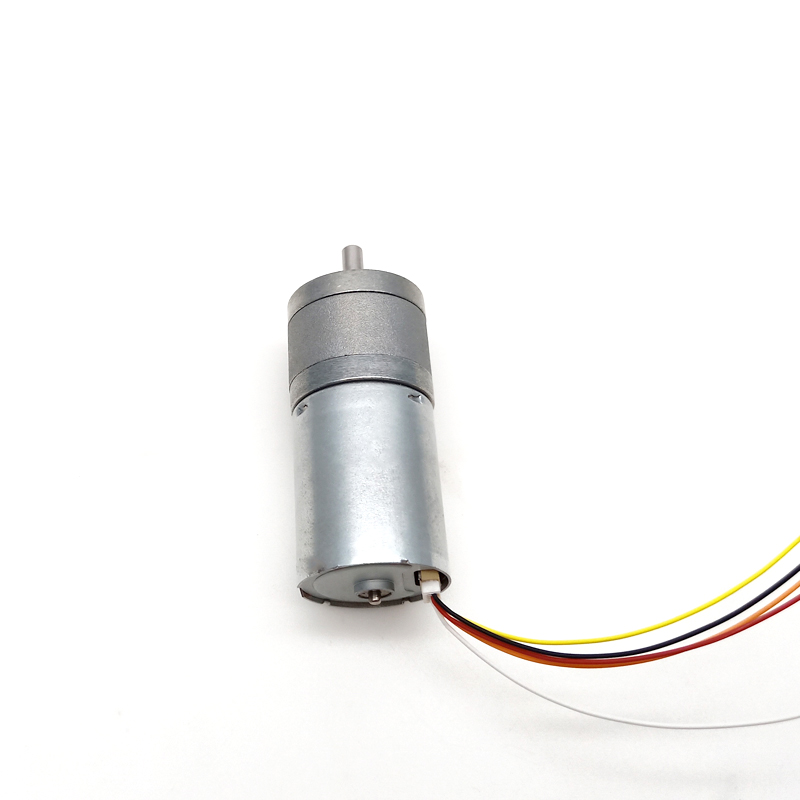

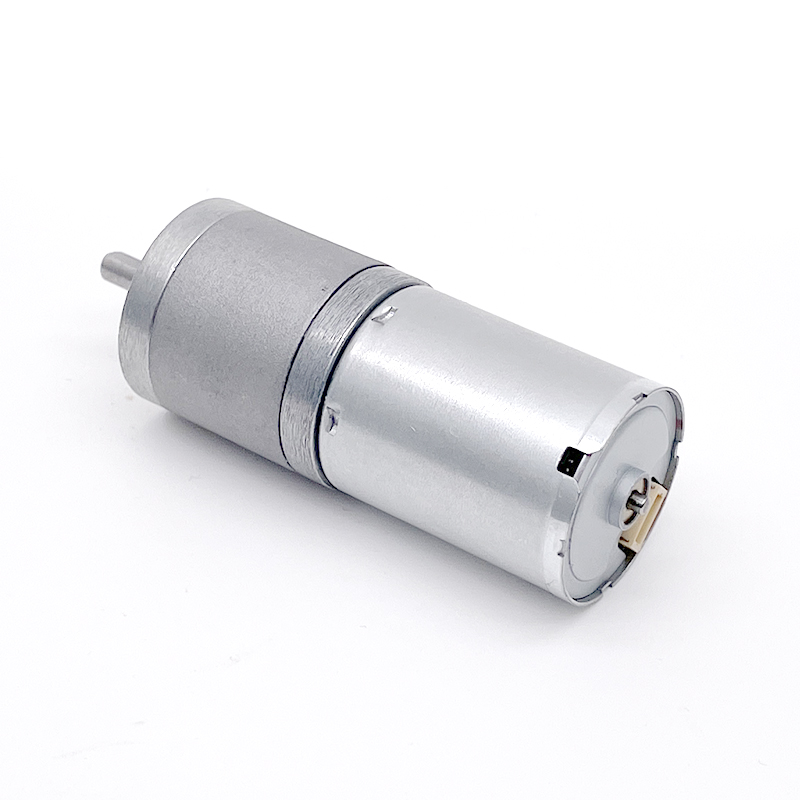

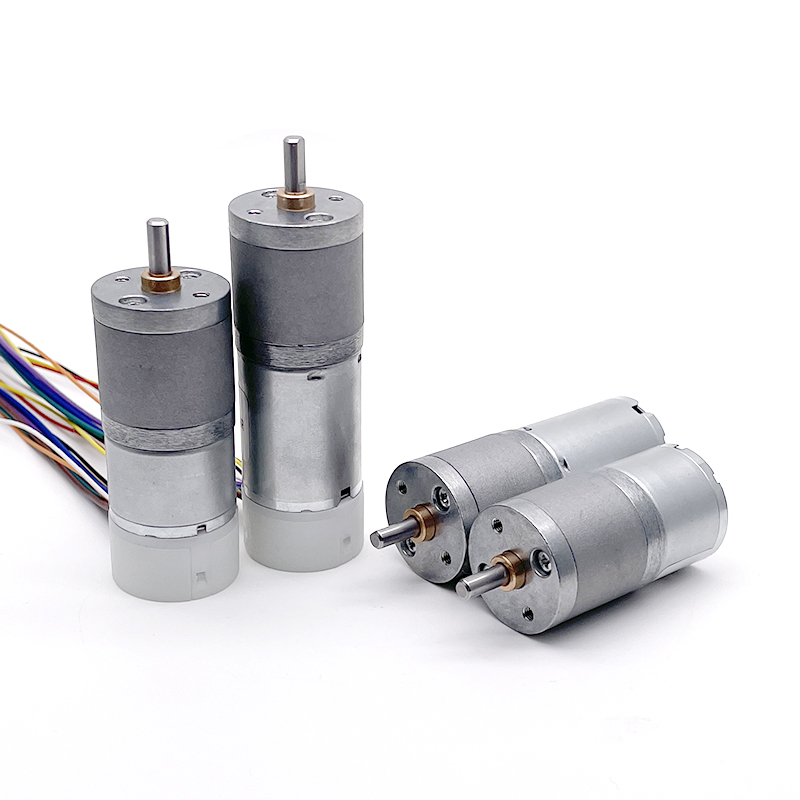

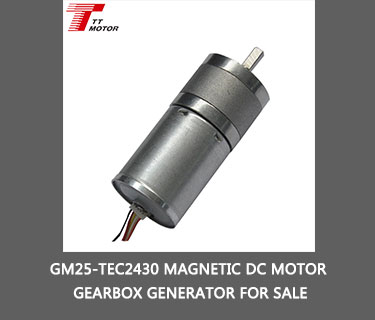

25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
1 / 5
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products

25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products

Send Inquiry

Product Description

25mm 12V 24V Micro Brushless Gear DC Motor used in Medical Products
Main Features
  • 25mm gearbox plus 24mm brushless motor
  • Small size dc gear motor with low speed and big torque
  • 25mm gear motor provide 0.5Nm torque and more reliable
  • Suitable to small diameter, low noise and big torque application
  • Dc gear motors can match encoder, 3ppr
  • Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499
Model Analysis
Model: Motor GM25-TEC2430
Model Variant Rated Voltage Rated Speed No-load Speed Rated Torque Stall Torque
TEC2430-0645 6V DC 3500r/min 4500r/min 62g.cm 120g/cm
TEC2430-1260 12V DC 4600r/min 6000r/min 84g.cm 140g/cm
TEC2430-2490 24V DC 7200r/min 9000r/min 90g.cm 180g/cm

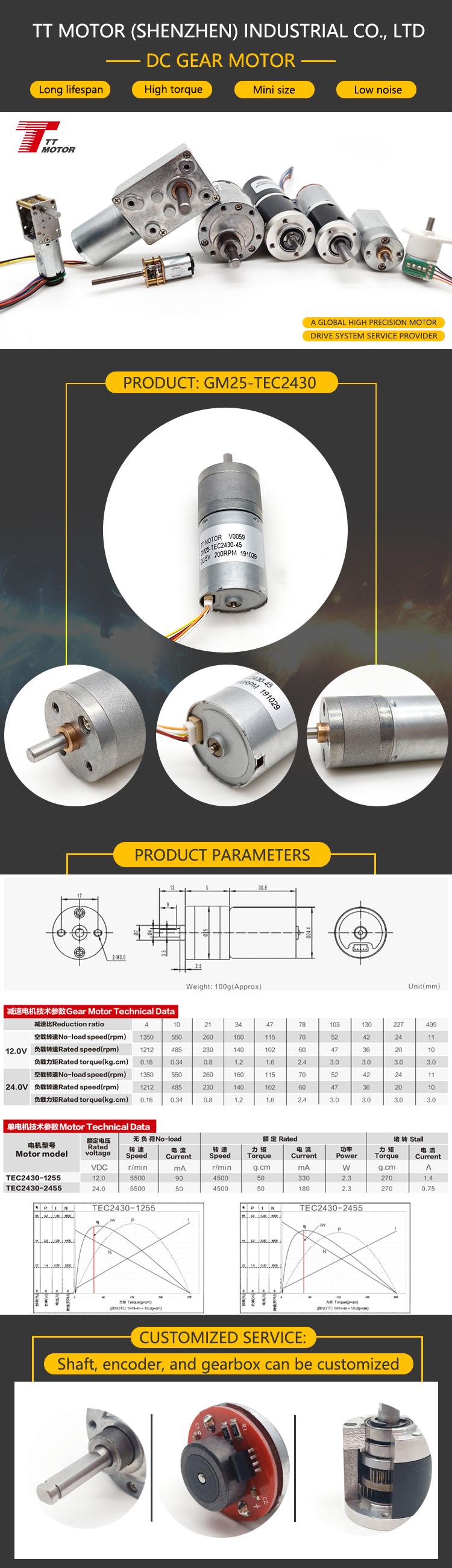

Brushless Gear DC Motor
Motor Dimension Chart
Detailed Reduction Ratio Parameters
Reduction ratio 41021344778103130227
Length (mm) 171919212123232525
No-load speed (rpm) 11004302051309555433520
Rated speed (rpm) 8703501651007545342716
Rated torque (kg.cm) 0.20.40.91.31.72.93.845
Product Applications

Our micro brushless gear motors are widely applied in various high-precision and high-torque fields:

  • Medical Service: Oxygen machines and medical equipment
  • Automation: Automatic door operators, electrical controlled valves
  • Smart Home: Electric curtains, automatic energy saving baths
  • Robotics: Robots and grass cutters
  • Business Machines: ATM, Vending machines, Printers, Copiers and Scanners
  • Optical Equipment: Cameras, Projectors, and Video equipment
Certifications & Quality Control

ISO9001, SGS, National high-tech enterprises, etc.

Certification
Certification 2
Certification 3
Our Production Capacity

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are dependable and long-lasting, backed by years of experience. We export 98% of our output worldwide.

Factory Environment
Factory Line
Major Partners

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery
Packing 1
Packing 2
Packing 3
Shipping Method Estimated Time
DHL3-5 working days
UPS / TNT5-7 working days
FedEx7-9 working days
EMS12-15 working days
Sea FreightDepends on destination
Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

Feedback 1
Feedback 2
Frequently Asked Questions
Q: How to place an order?
A: Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery.
Q: Are sample orders available?
A: Yes, samples are available for you. Please contact us for details. Sample fees can be refunded when you place a formal order.
Q: What shipping methods do you offer?
A: We offer DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other shipping ways are available upon request.
Q: What is the typical production and shipping time?
A: Delivery time depends on the order quantity, typically taking 15-25 working days for production.
Q: What should I do if my package has missing products?
A: Please contact our support team immediately. We will verify your order against the package contents and resolve the issue.
Q: What payment methods are accepted?
A: We accept T/T, PayPal, and other negotiable methods. A 30-50% deposit is standard, with the balance due before shipping.
