Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
⚡

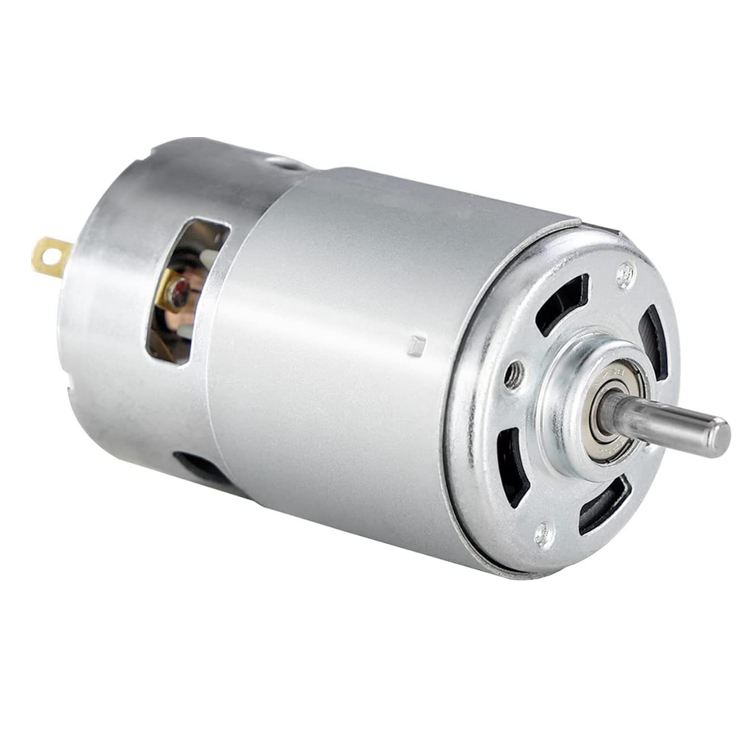

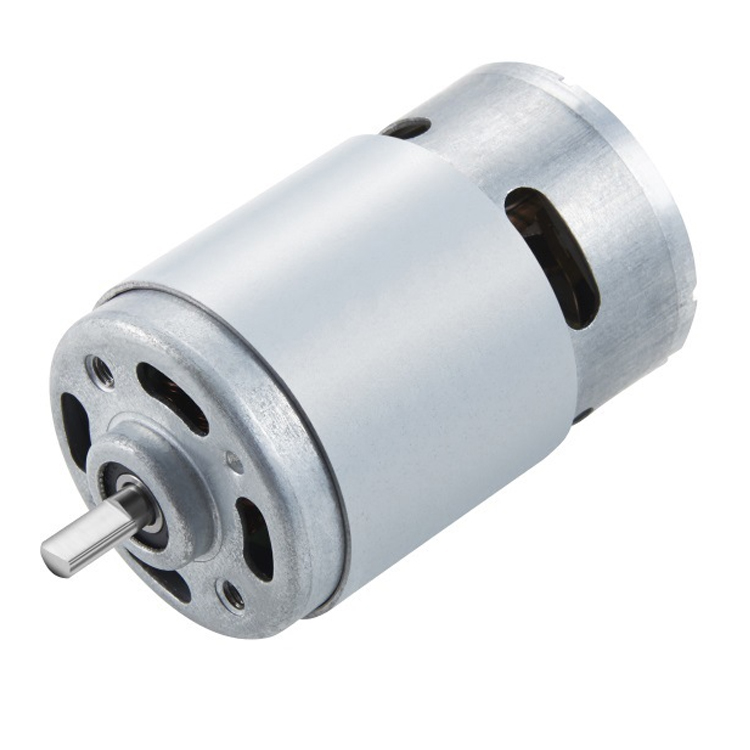

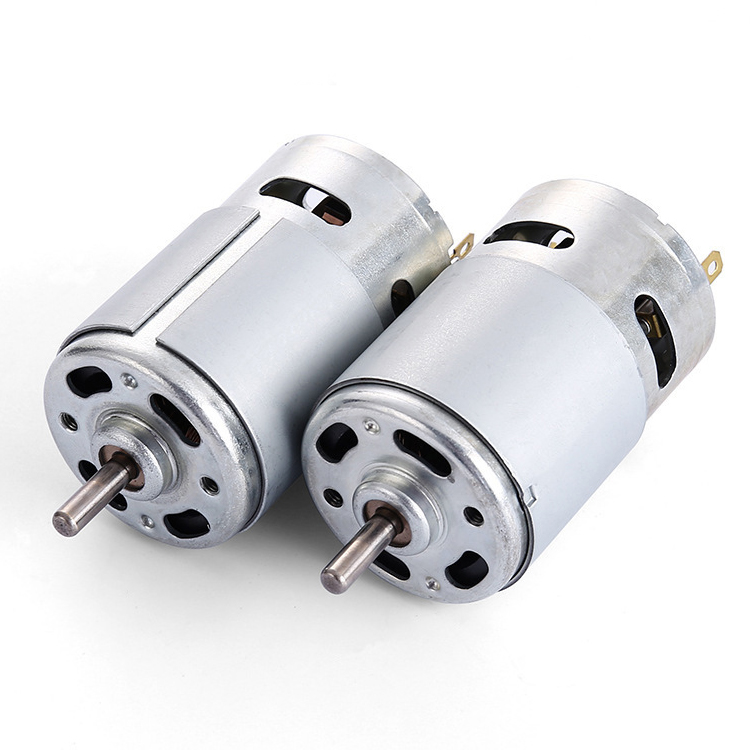

High efficiency, less noise, and low current 24V DC motor performance.
📦
Can match with 45mm planetary gearbox or 51mm gear box for varied torque requirements.
📏
Shaft Specifications: 5.0mm diameter, shaft length 14.5/19.5mm.
🔧
Mounting Holes: 2-M4.0x0.7 for secure installation.
🔢
Double shaft available for encoder integration, 12ppr.
🧪
Samples can be provided for your professional testing and evaluation.
Frequently Asked Questions
What is the operating voltage range for these motors?
The RS-775 series typically operates within a range of 6.0V to 30.0V DC, with nominal ratings at 12V and 24V depending on the specific model.
Can these motors be used with gearboxes?
Yes, these motors are designed to be compatible with 45mm planetary gearboxes or 51mm standard gearboxes for increased torque.
Are these motors suitable for high-speed applications?
Absolutely. These are high-RPM brushed motors capable of reaching speeds up to 7600 rpm under no-load conditions at nominal voltage.
Do you support encoder integration?
Yes, we provide a double shaft option specifically for encoder mounting, supporting 12ppr (pulses per revolution).

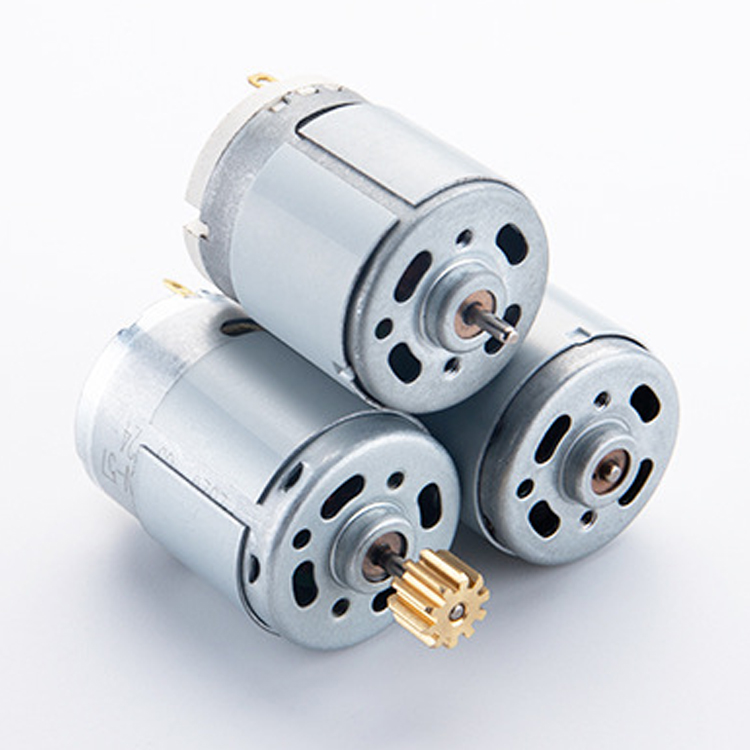

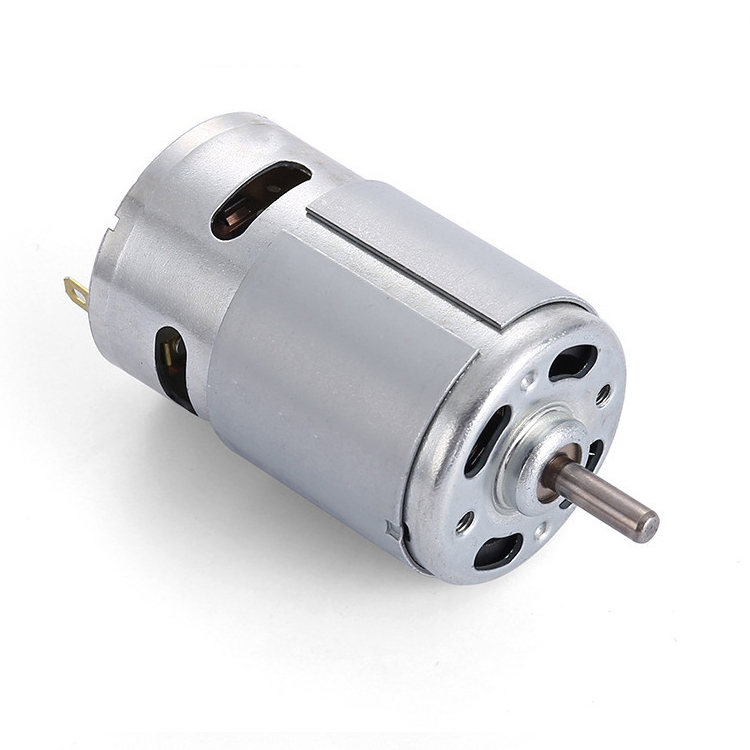

What are the common industrial uses for the RS-555 and RS-775?
Common applications include water pumps, power tools (circular saws, trimmers), office equipment (printers, copiers), and household appliances like hair dryers.
How can I obtain samples for testing?
We can provide samples upon request so you can verify the performance, efficiency, and noise levels in your specific application.
