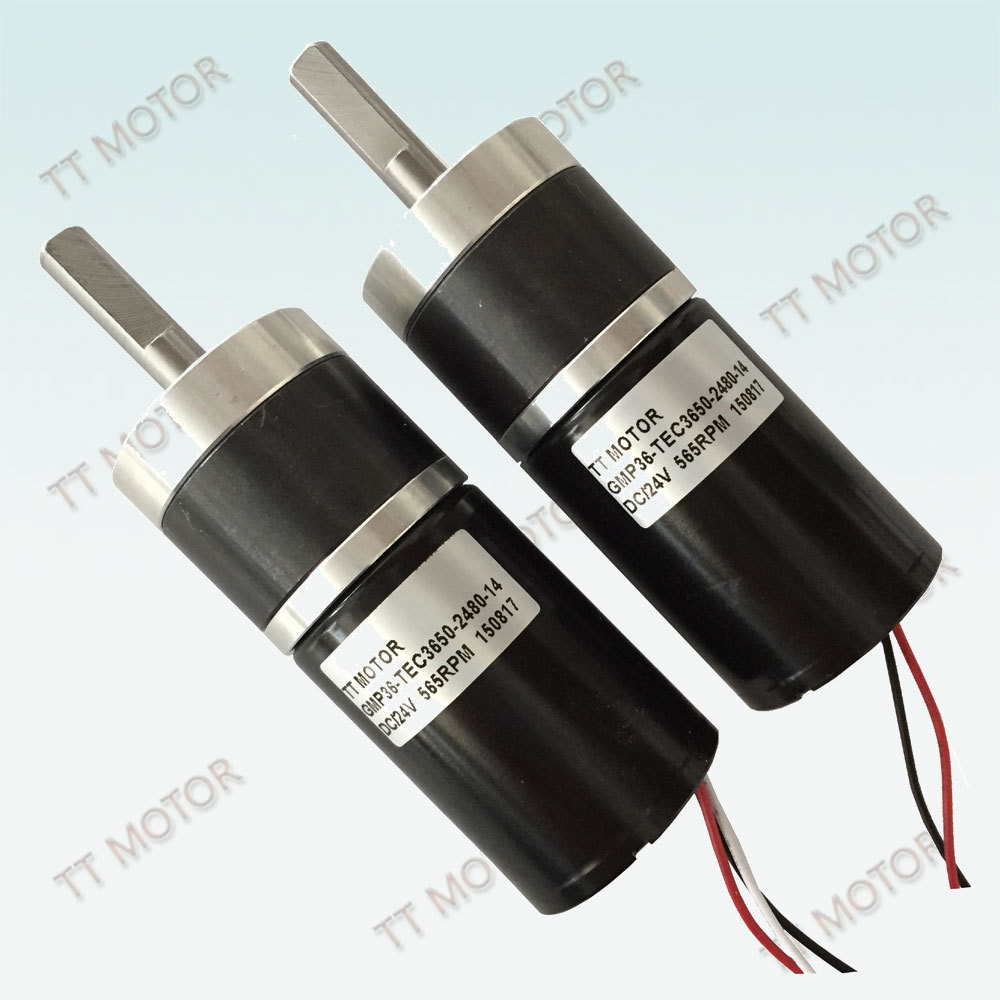

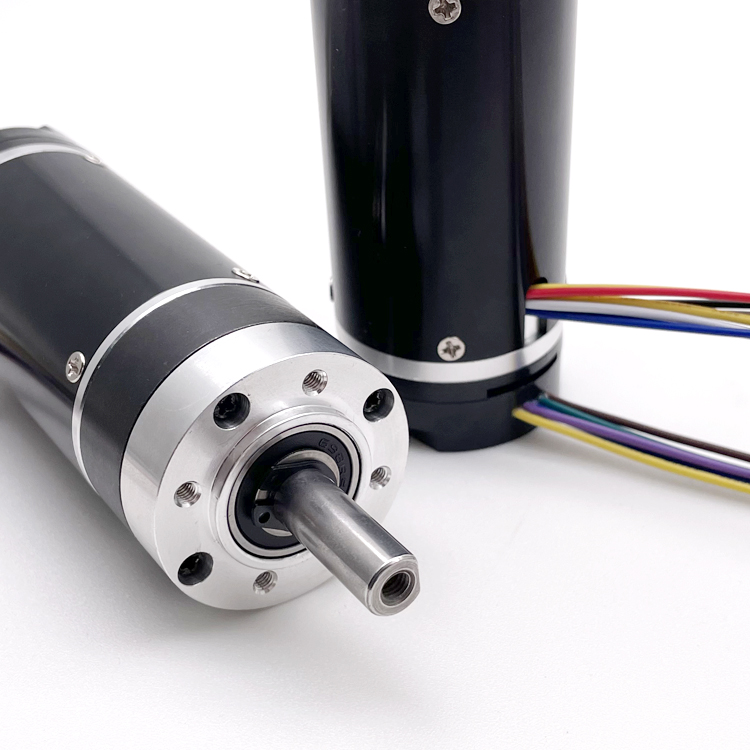

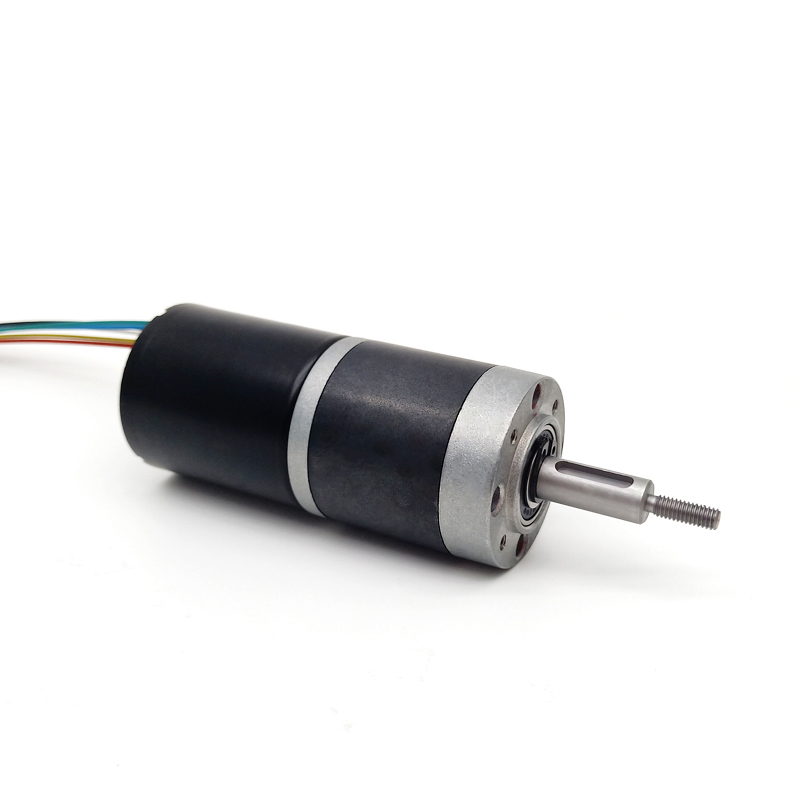

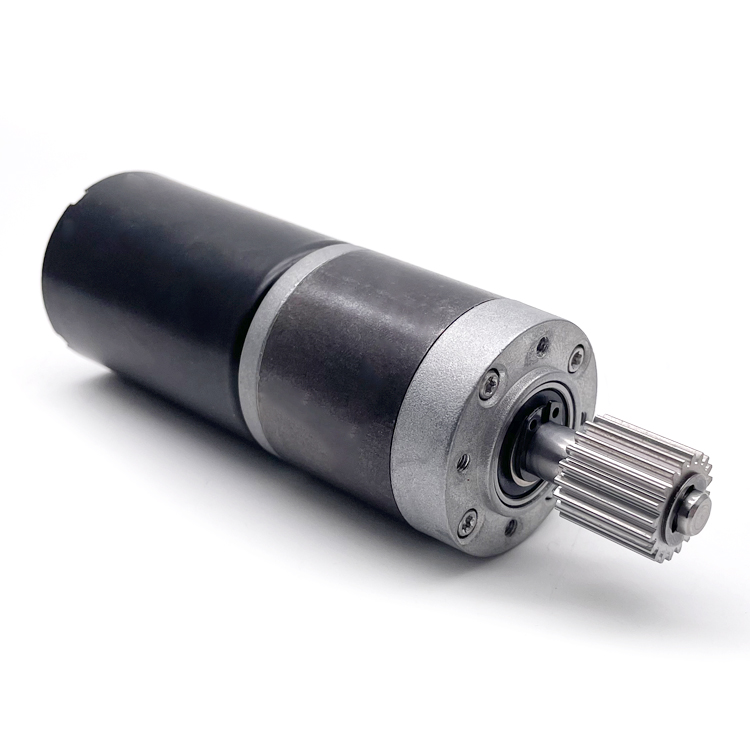

Fluxon Motor
Fluxon Motor
| Model Variant | Rated Voltage | No-load Speed | Rated Torque | Stall Torque |
|---|---|---|---|---|
| TEC3650-2465 | 24VDC | 6500r/min | 200g.cm | 1150g.cm |
| TEC3650-2440 | 24VDC | 4000r/min | 200g.cm | 1000g.cm |
| TEC3650-1245 | 12VDC | 4500r/min | 230g.cm | 820g.cm |
| Reduction ratio | 4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length (mm) | 26 | 33.5 | 40.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| Rated speed (rpm) | 750 | 160 | 60 | 30 | 22 | 16 | 12 | 8 | 6 |
| Rated torque (kg.cm) | 0.6 | 2.7 | 6.0 | 12 | 16.6 | 22.5 | 30 | 30 | 30 |
🚀 Core Applications: Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
💼 Business Machines: Vending Machines, Printers, ATM, Copiers and Scanners.
📷 Optical Equipment: Video Cameras, Projectors.
🏡 Lawn & Garden: Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Our products are manufactured under strict quality control standards, including ISO9001, SGS, and National High-tech Enterprise certifications.
Specializing in micro motors, gear motors, and respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances. We export 98% of our output worldwide, maintaining a reputation for honesty, dependability, and quality.
📦 Standard Export Packing: Ensures safe transit for global orders.
