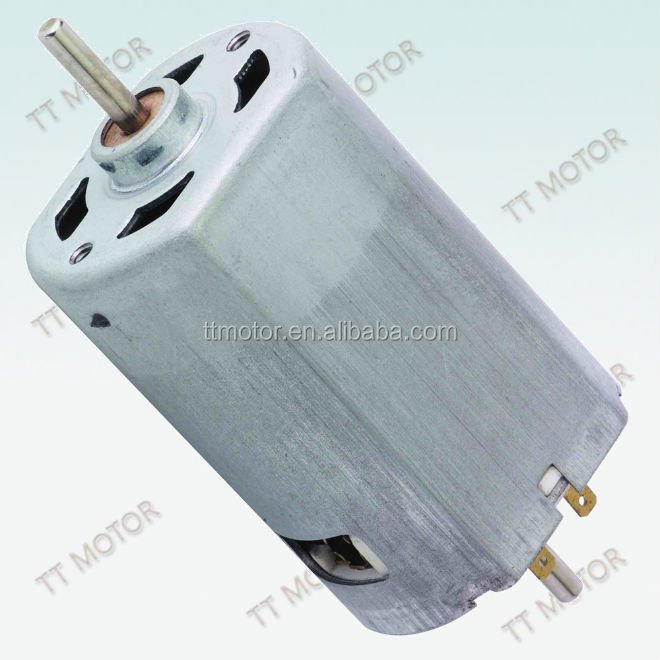

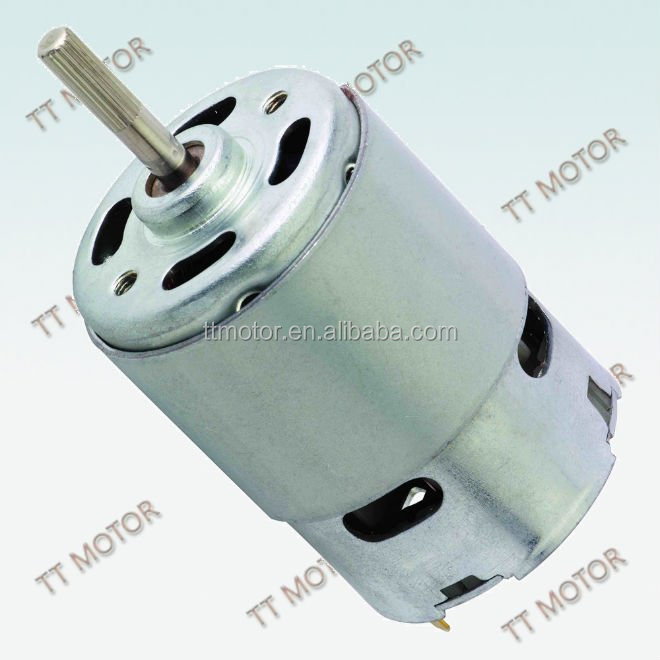

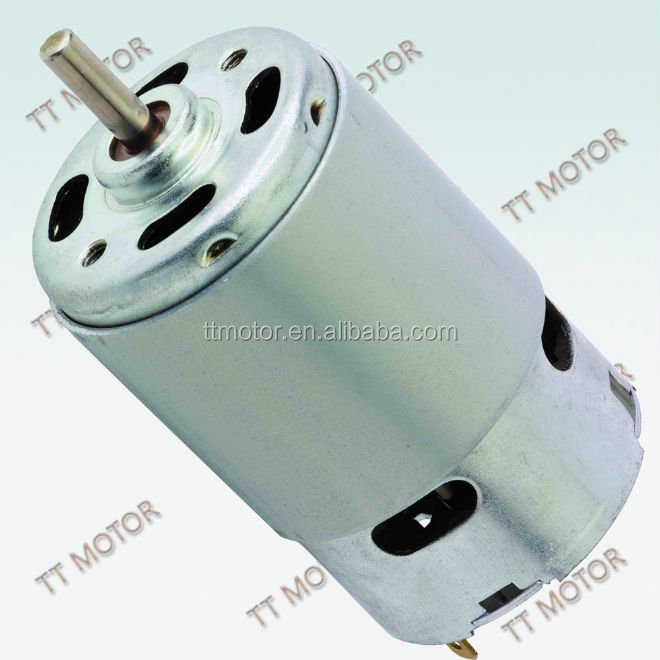

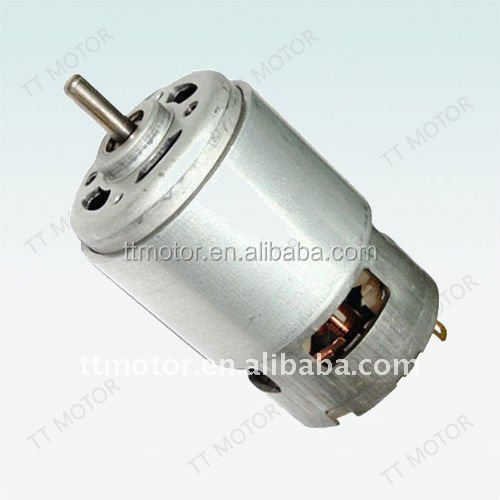

TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
1 / 5
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor

TRS-550PM or 24v Dc Motor

Send Inquiry

Product Description

24V DC Motor TRS-550PM High Performance Series
⚡
Voltage 120V
🚀
Speed 18000 RPM
⚙️
Torque 3512g.cm
🛡️
Key Features Low current, Low noise, No spark, No vibration
🛠️ Typical Applications
Ride-on Toy, Grass Trimmer, Air Compressor, Electric Drill, and other power tools.
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mN.m g.cm w mN.m g.cm A
TRS-550PM-35100 3.0-18.0 12.0 5200 0.25 4330 1.60 29.41 300 13.3 176.47 1800 8.32
TRS-550PM-6530 6.0-12.0 12.0 18000 1.30 16100 7.15 41.18 420 69.0 344.31 3512 52.0

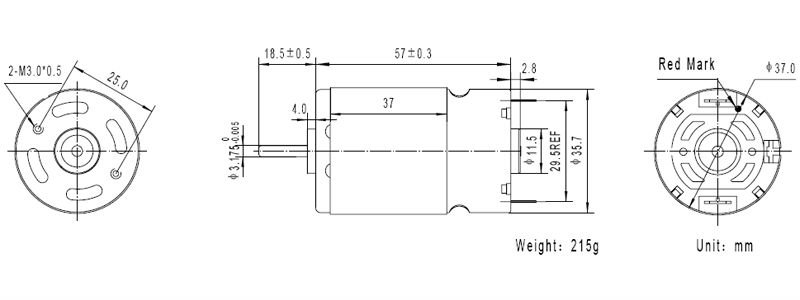

TRS-550PM or 24v Dc Motor Technical Drawing
Frequently Asked Questions (FAQ)
Q1: What are the main applications for the TRS-550PM DC motor? A: The TRS-550PM motor is highly versatile and commonly used in ride-on toys, grass trimmers, air compressors, and various handheld power drills.
Q2: Does this motor provide a stable and quiet operation? A: Yes, it is specifically designed for low noise and low vibration, ensuring a smooth operation without sparking, which extends the motor's lifespan.
Q3: What is the maximum speed and torque of the TRS-550PM-6530 model? A: The TRS-550PM-6530 model features a high speed of up to 18,000 RPM at no load and a stall torque of 3512 g.cm.
Q4: What is the operating voltage range for these motors? A: Depending on the specific model variation, the operating range spans from 3.0V to 18.0V, with a nominal voltage typically at 12.0V or 120V as per specific configuration requirements.
Q5: Is the TRS-550PM motor energy efficient? A: Absolutely. It is designed to maintain high efficiency even under load, with specific models reaching maximum efficiency at current levels as low as 1.60A.
Q6: How does the "No Spark" feature benefit my equipment? A: The "no spark" design reduces electromagnetic interference (EMI) and prevents internal heat buildup, making it safer and more reliable for sensitive electronic applications.
