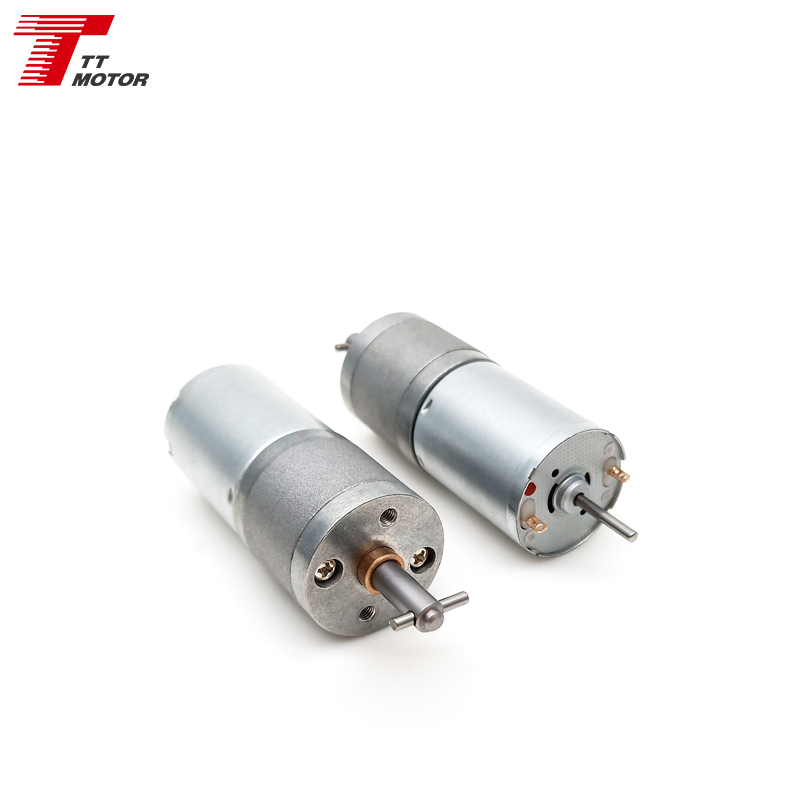

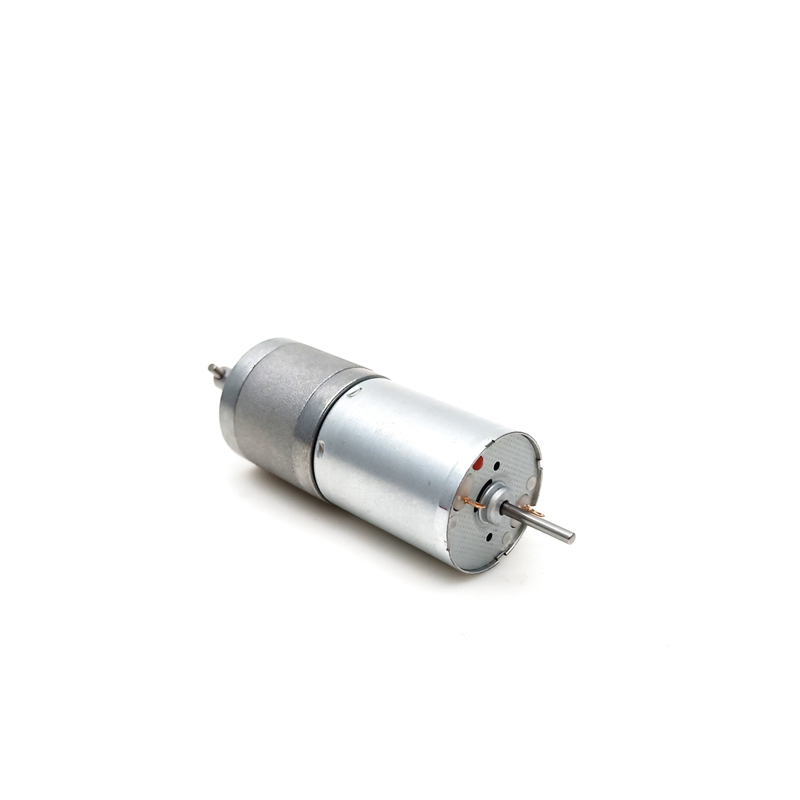

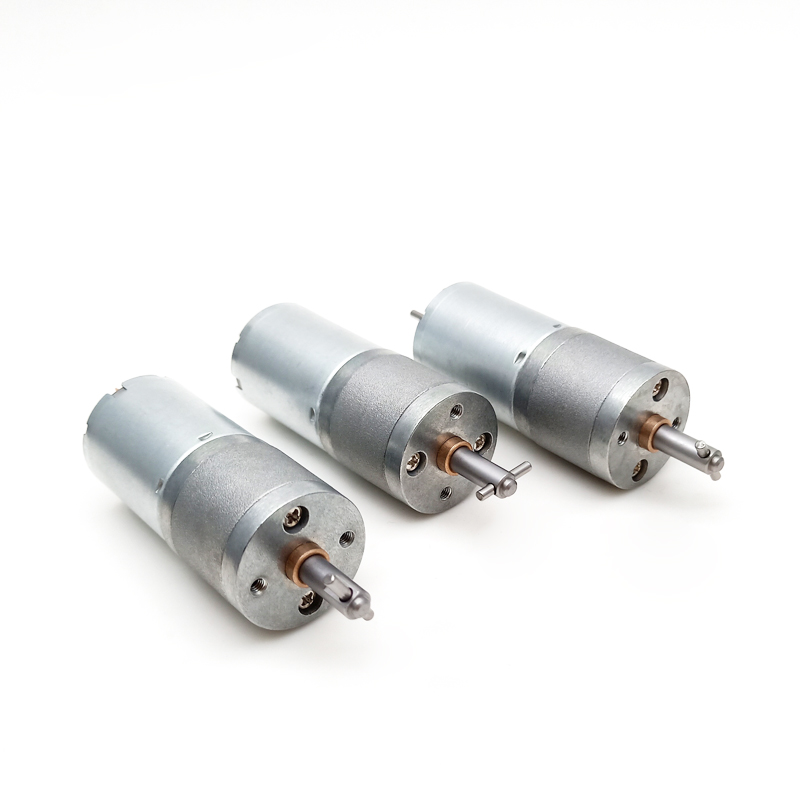

GM25-370CA 6V 12V DC Electric Gear Motor for TV Broadcast Satellite Antenna
Main Features
- 25mm gearbox plus 370 & 320 permanent magnet DC motor
- Small size DC gear motor with low speed and big torque
- 25mm gear motor provides 0.5Nm torque and more reliability
- Suitable for small diameter, low noise and big torque applications

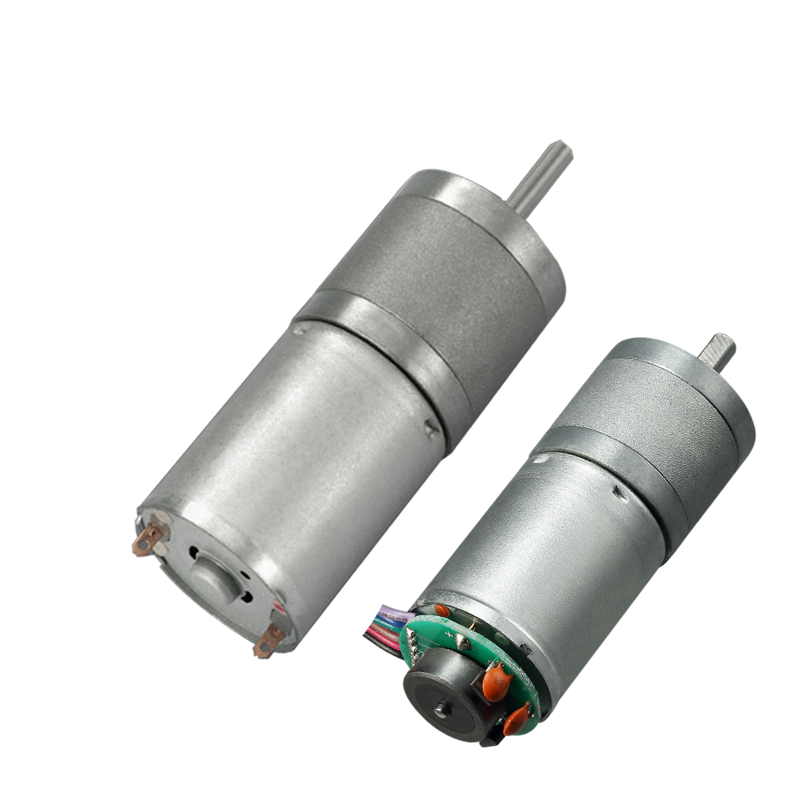

- DC gear motors can match encoder, 11ppr
- Reduction ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499
Technical Specifications
| Model |
Rated Voltage |
No-load Speed |
Rated Speed |
Rated Torque |
Stall Torque |
| TRK-370CA-22170 |
6VDC |
5600r/min |
4800r/min |
24g.cm |
186g.cm |
| TRK-370CA-15360 |
12VDC |
5600r/min |
4800r/min |
24g.cm |
186g.cm |
| TRK-370CA-12560 |
12VDC |
3700r/min |
3000r/min |
20g.cm |
125g.cm |
Performance Data (Reduction Ratio)
| Reduction ratio |
4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length (mm) |
17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) |
1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated torque (kg.cm) |
0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Business Machines |
Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera & Optical |
Video Cameras, Projectors |
| Lawn & Garden |
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Production and Expertise
Specializing in micro motors, gear motors and their respective parts since 2000. Products are widely used in entertainment systems, automobiles, home and industrial appliances and tools. 98% of output is exported worldwide, built on a reputation for honesty, dependability and quality.
Packing & Delivery
Standard professional packing for global shipping.
Shipping Time:
- DHL: 3-5 working days
- UPS/TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- Sea Freight: Depends on destination country
Frequently Asked Questions
Q: How to place an order?
A: Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: Is a sample order available?
A: Yes, samples are available. Please contact us for details. Sample fees are typically refunded when you place a formal mass order.
Q: Which shipping ways are available?
A: We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other methods can be arranged upon request.
Q: How long is the production and shipping time?
A: Delivery time depends on the order quantity. Typically, production takes 15-25 working days.
Q: What should I do if my package has missing products?
A: Please contact our support team immediately. We will verify your order against the package contents and resolve the issue.
Q: What are the accepted payment methods?
A: We accept T/T and PayPal. Other payment methods may be accepted upon negotiation. A 30-50% deposit is required, with the balance paid before shipping.
