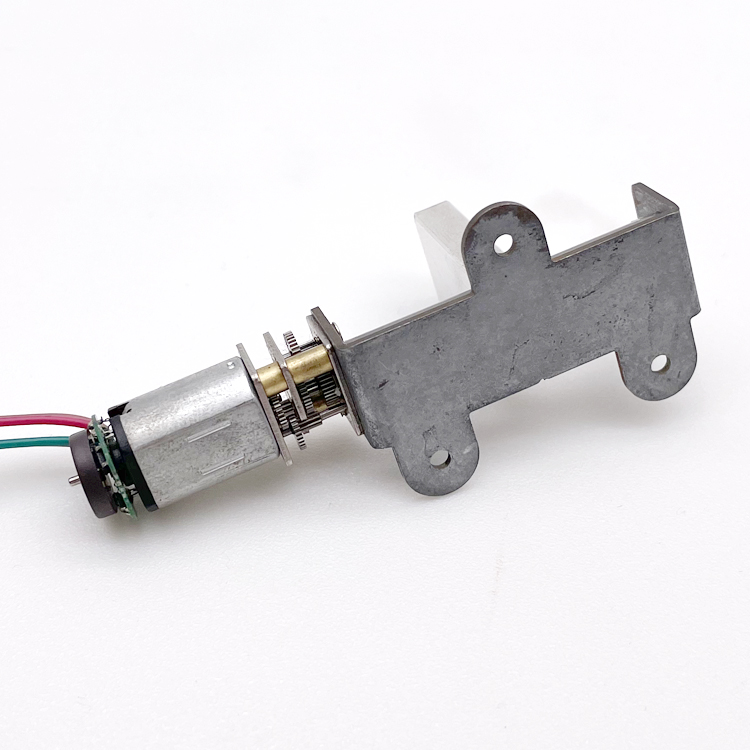

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

Send Inquiry

Product Description

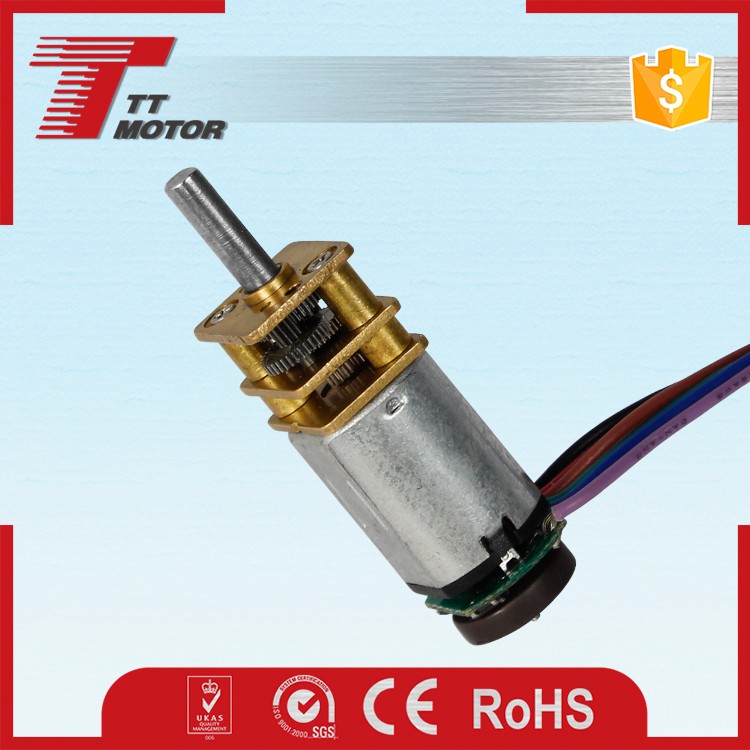

3V DC Mini Gear Motor 12mm Electric Motor with Encoder

Main Features

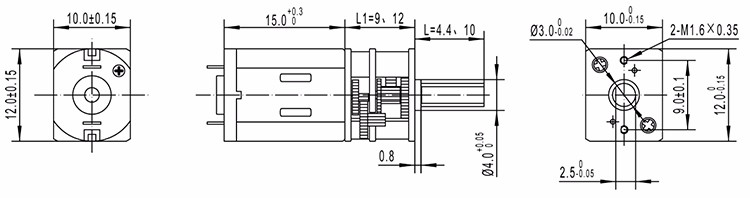

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

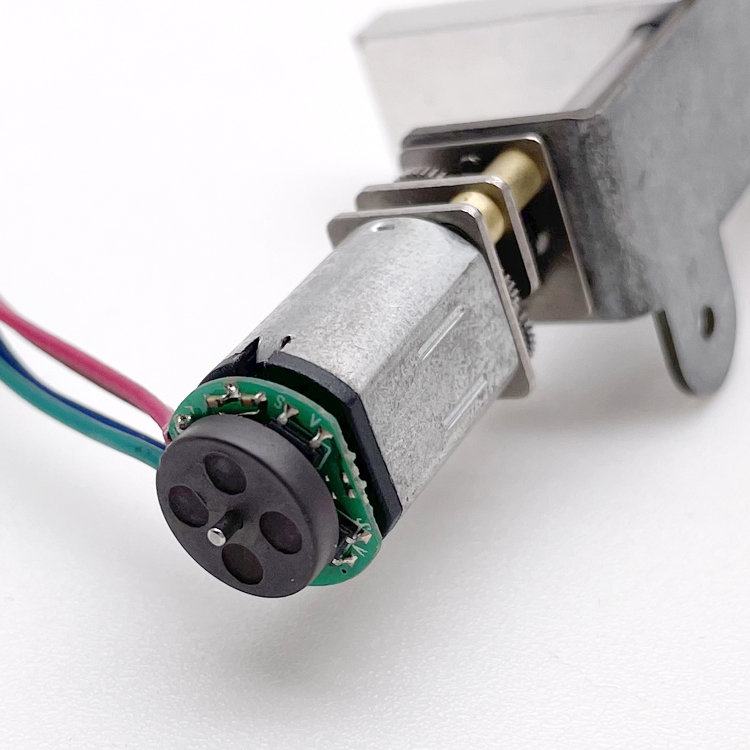

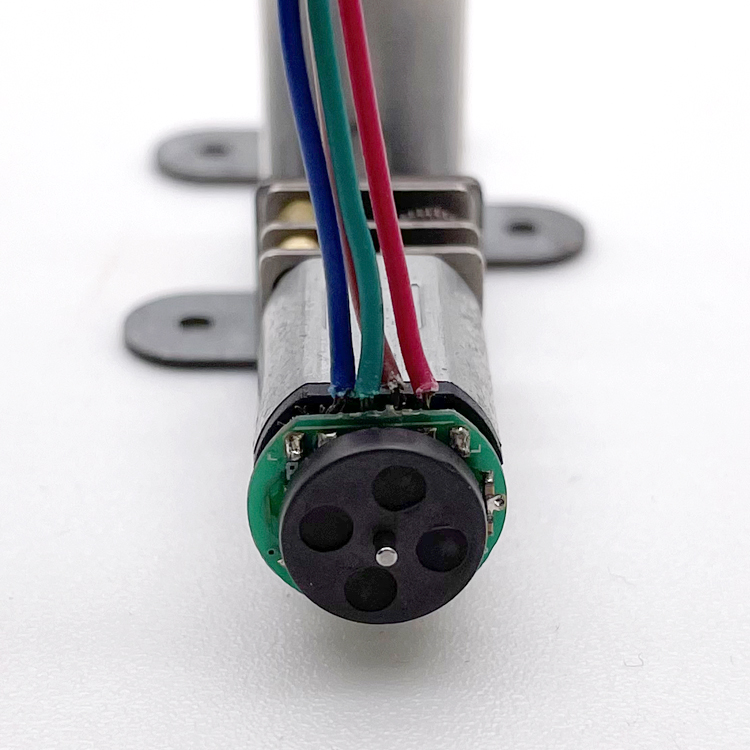

DC Gear motors can match encoder, 3ppr
Wide range of reduction ratios: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Motor Specifications: GM12-N20VA

Model	Electrical Parameters	Performance Details	Power Output
TFF-N20VA-13110	Rated voltage: 2.4V DC	Rated speed: 12000r/min	Output power: 0.31W
	No-load speed: 14800r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 60mA	Rated current: 200mA	Stall current: 1.20A
TFF-N20VA-09220	Rated voltage: 5V DC	Rated speed: 12200r/min	Output power: 0.31W
	No-load speed: 15000r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 30mA	Rated current: 120mA	Stall current: 0.6A
TFF-N20VA-05430	Rated voltage: 12V DC	Rated speed: 12500r/min	Output power: 0.35W
	No-load speed: 16000r/min	Rated torque: 3.0g.cm	Stall torque: 13g/cm
	No-load current: 15mA	Rated current: 60mA	Stall current: 0.25A

Gearbox Performance (GM12-N20VA-13110)

Reduction ratio	10	30	50	100	150	210	250	298	380
No-load speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5

Gearbox Performance (GM12-N20VA-09220)

Reduction ratio	10	30	50	100	150	210	250	298	380
No-load speed (rpm)	1480	490	290	150	98	70	60	50	38
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5

Product Application

Automatic door operators

Energy saving bath

Electrical controlled valve

Oxygen machines

Optical equipment

Cordless power tools

Professional lighting

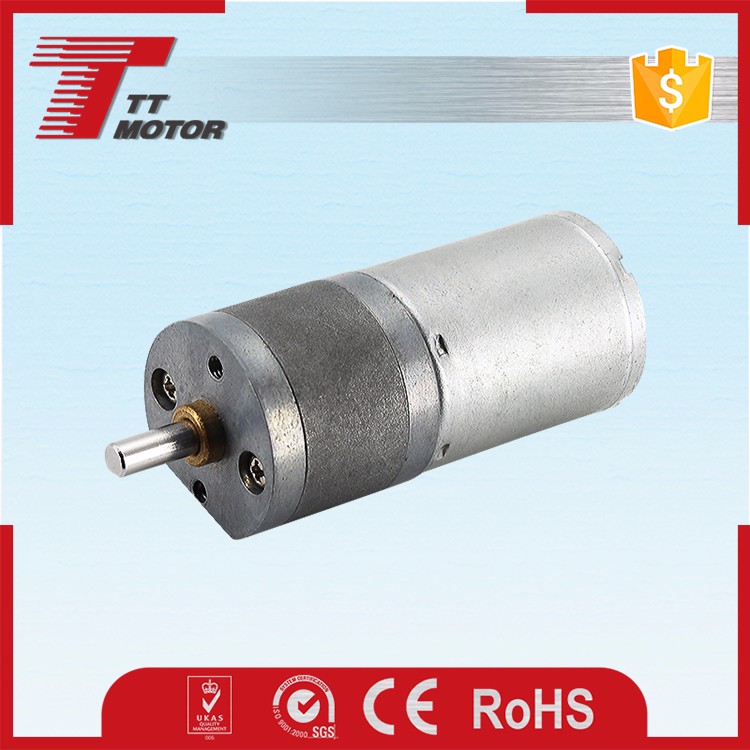

Related Products

Packing & Delivery

Packaging: Single carton packing, 500 pieces per box.

Shipping Options: DHL (3-5 days), UPS (5-7 days), TNT (5-7 days), FedEx (7-9 days), EMS, Sea freight, and Post services.

About Us

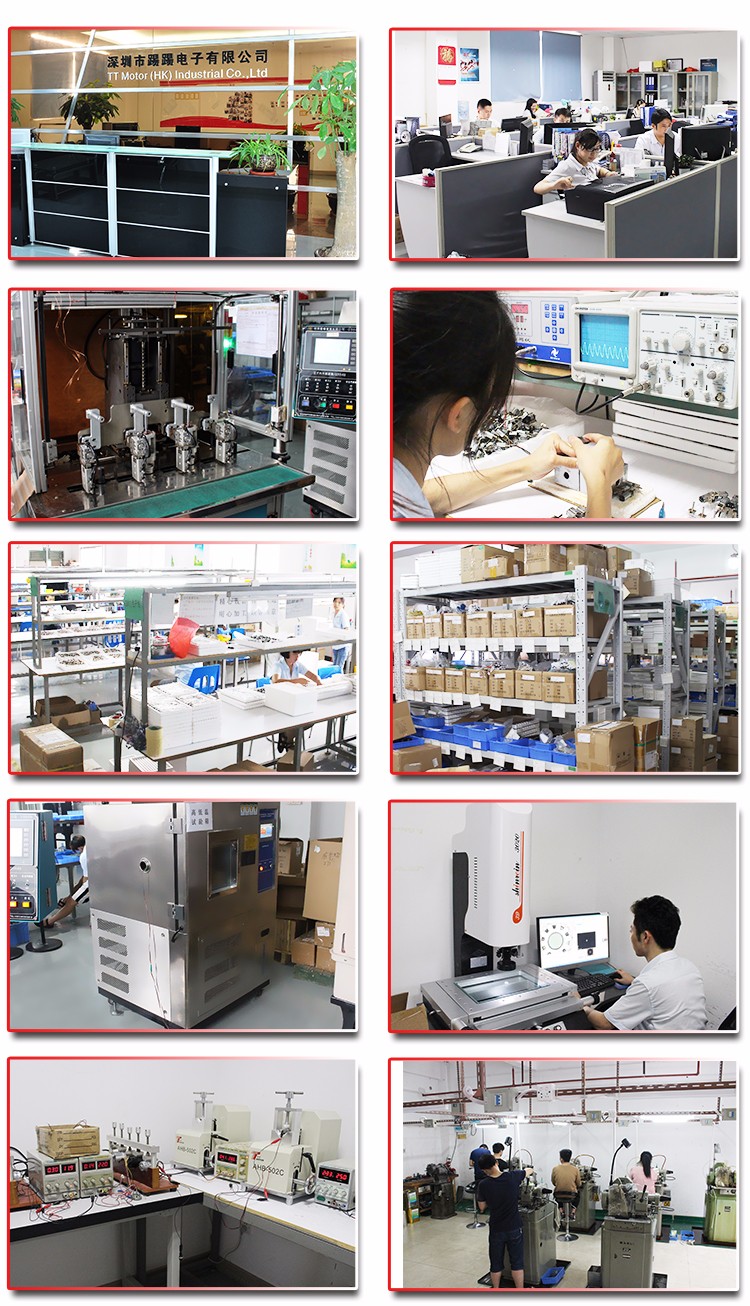

Our facility has been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. We export 98% of our output worldwide, maintaining a reputation for honesty, dependability, and quality.
