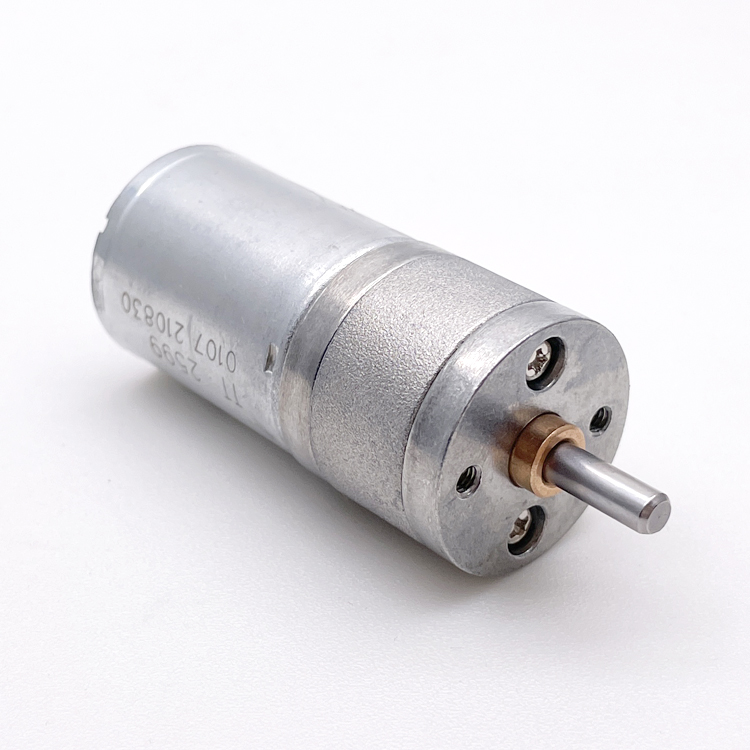

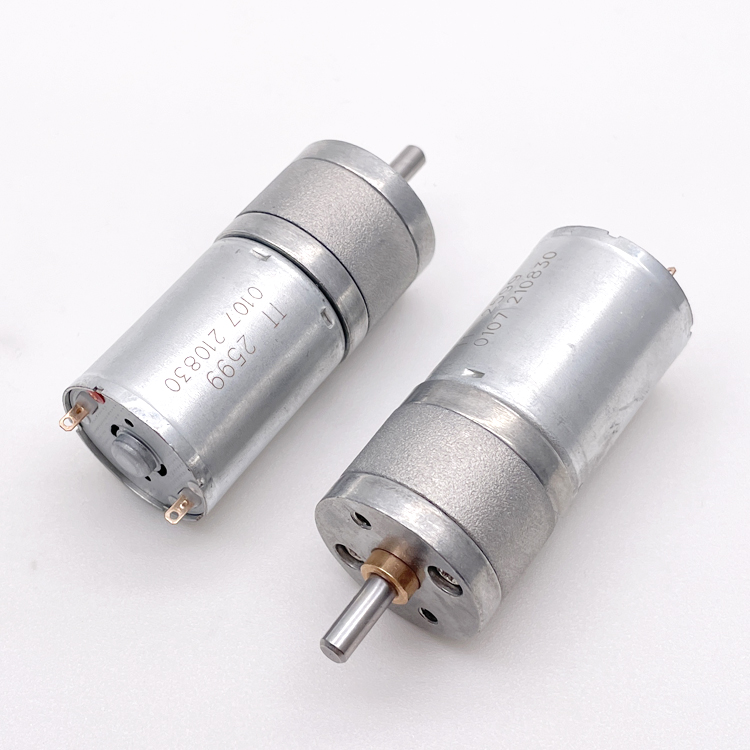

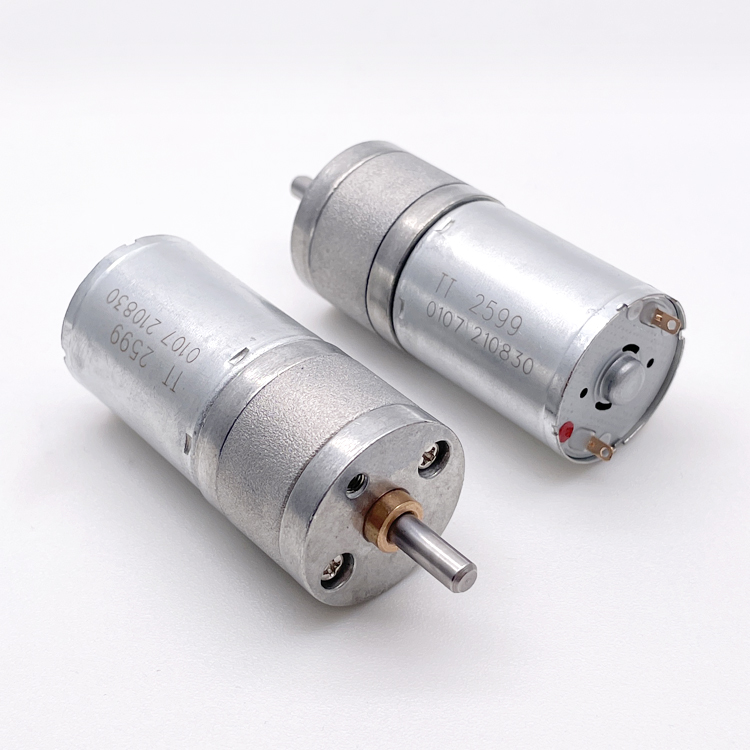

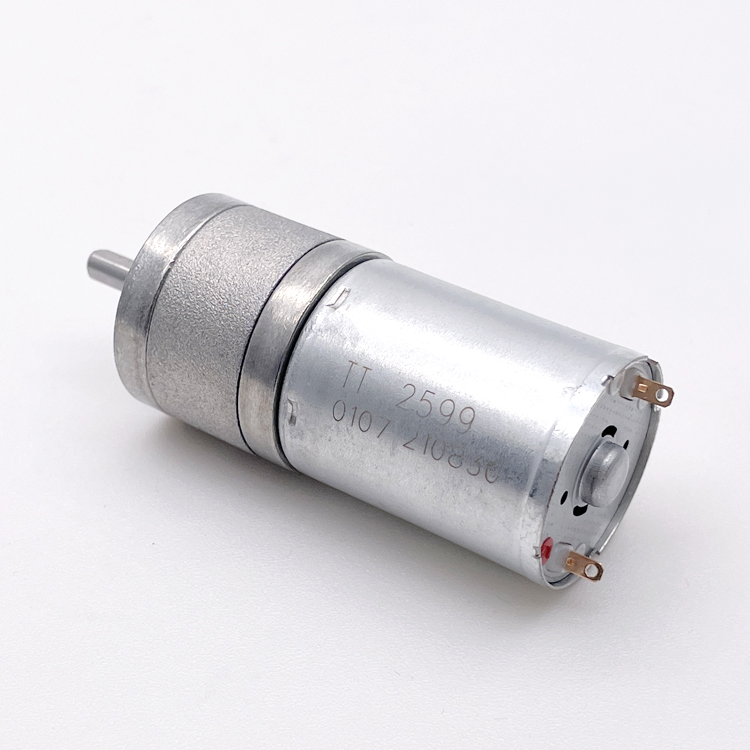

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

1 / 5

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

Send Inquiry

Product Description

GM25-370CA electric 12v encoder dc gear motor for automatic toys

High Precision

Product Application:
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

Main Features

25mm gearbox plus 370 & 320 permanent magnet DC motor
Small size dc gear motor with low speed and big torque
25mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

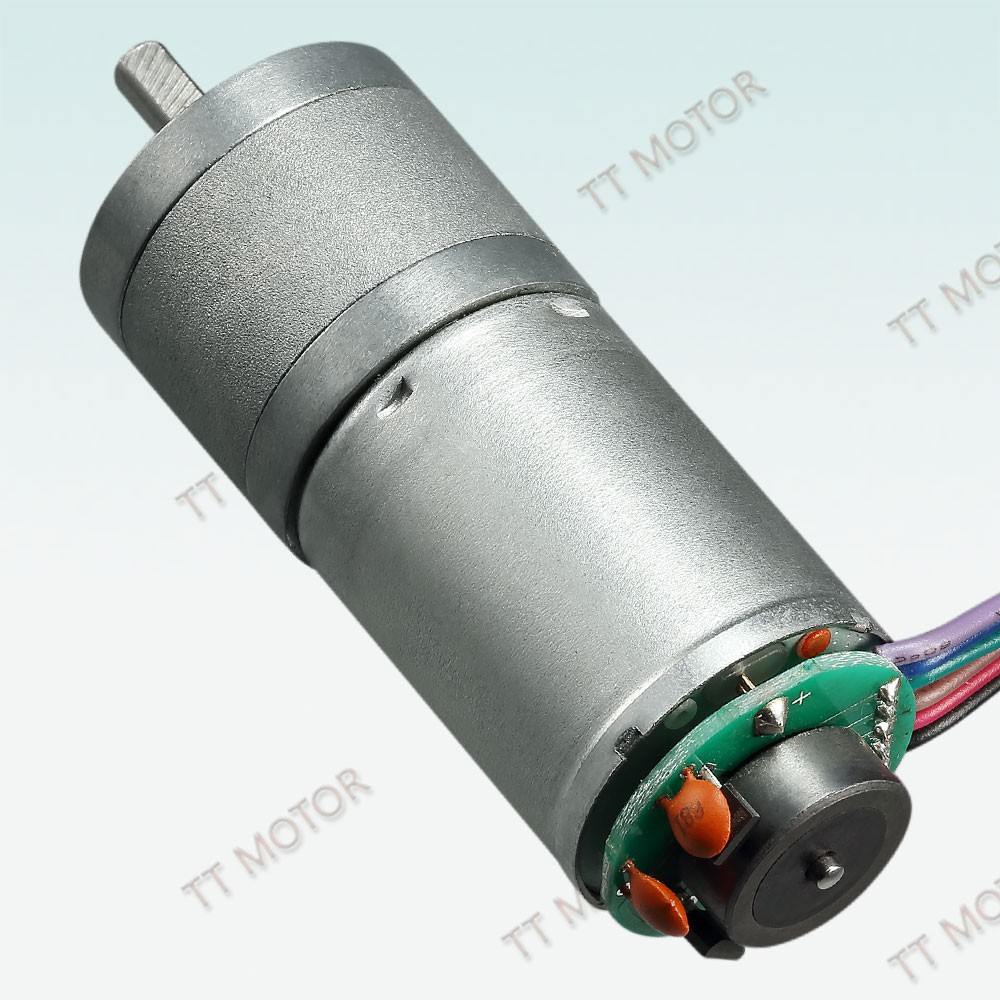

DC gear motors can match encoder, 11ppr
Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

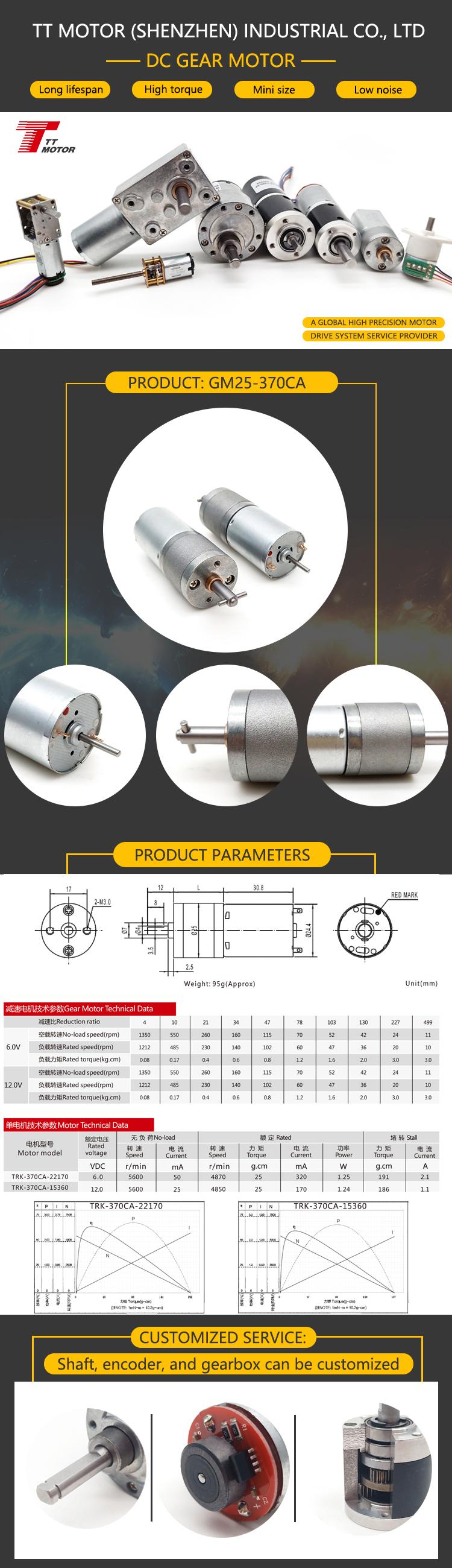

Technical Specifications

Model	Rated Voltage	No-load Speed	Rated Torque	Stall Current
TRK-370CA-22170	6VDC	5600 r/min	24 g.cm	2.1A
TRK-370CA-15360	12VDC	5600 r/min	24 g.cm	1.06A
TRK-370CA-12560	12VDC	3700 r/min	20 g.cm	0.6A

Performance Data (Reduction Ratio)

Reduction ratio	4	10	21	34	47	78	103	130	227
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7

Packaging & Shipping

Case Pack (pcs)	Carton Size	Gross Weight
840	41.5 * 34.5 * 18.5 CM	10.5kg

Typical Application

Business Machines: ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage: Beverage Dispensing, Hand Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Ice Makers.
Medical: Urine Analyzer, Blood Sugar Analyzer, Injector.
Lawn and Garden: Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

Certifications & Quality

Customer Reviews & Global Presence

About Our Expertise

Specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. With products that are dependable and long-lasting, backed by years of experience, we export 98% of our output worldwide. We aim to continue as a pioneer in sales overseas by seeking global partners, including end-users, distributors, or agents.

Frequently Asked Questions

Q1: What is the diameter of the GM25-370CA gear motor? A: The motor features a 25mm diameter gearbox, making it suitable for compact applications requiring high torque.

Q2: Can this motor be equipped with an encoder? A: Yes, these DC gear motors can match with an encoder, providing 11 pulses per revolution (ppr) for precise control.

Q3: What voltages are available for this series? A: The series standardly supports 6VDC and 12VDC configurations depending on the specific model chosen.

Q4: What is the maximum torque the gearbox can handle? A: It provides a rated torque up to 2.7kg.cm and has a maximum momentary tolerance torque of up to 10kg.cm for certain reduction ratios.

Q5: What are the typical reduction ratios provided? A: Available reduction ratios include 4, 10, 21, 34, 47, 78, 103, 130, and up to 499, allowing for a wide range of speed and torque outputs.

Q6: What industries commonly use these motors? A: They are widely used in business machines (vending, ATMs), medical equipment (analyzers), and household appliances like coffee machines and juicers.
