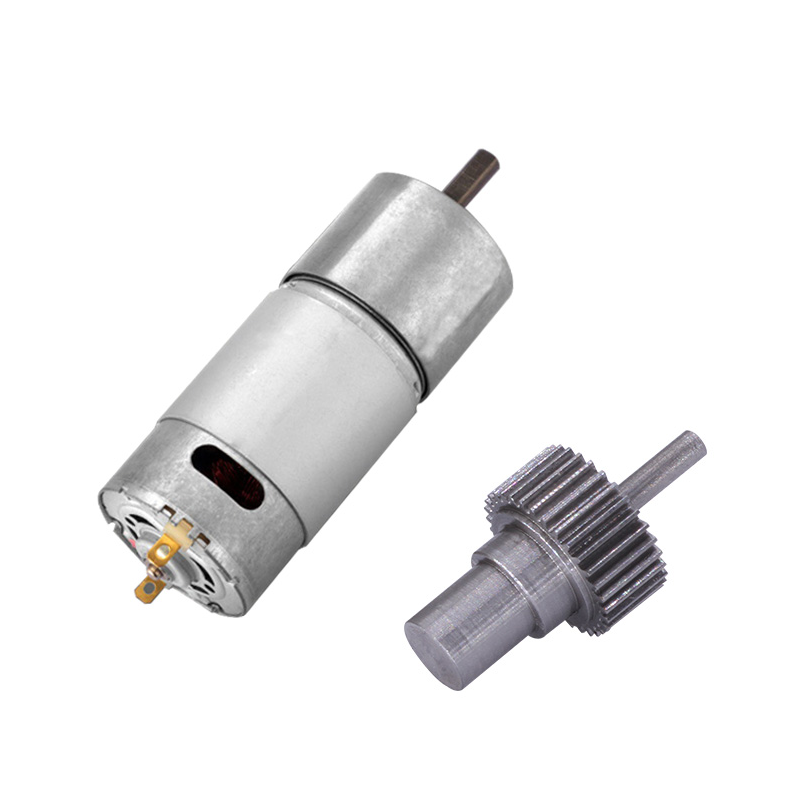

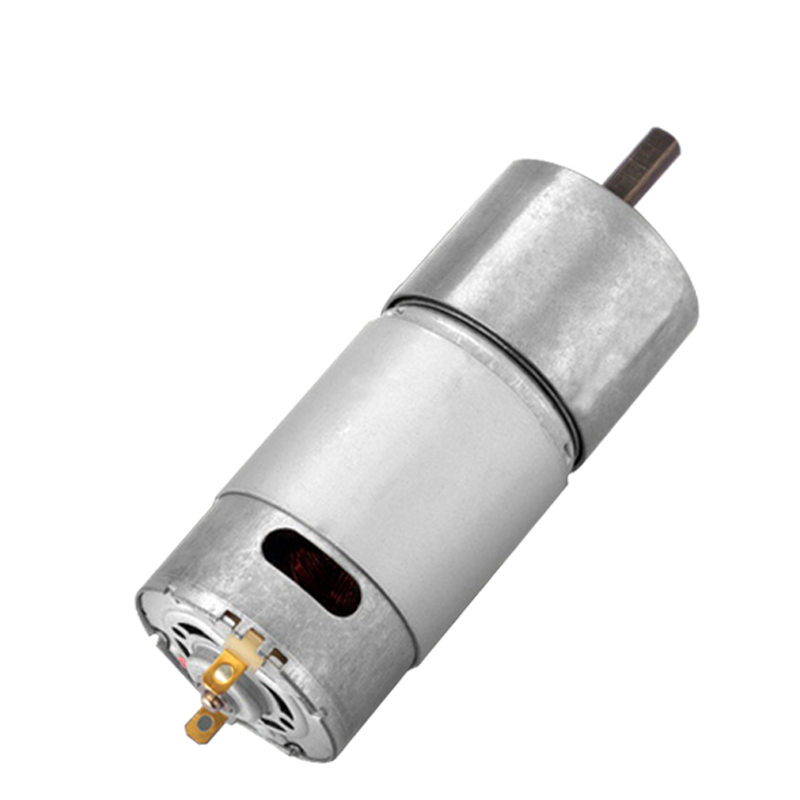

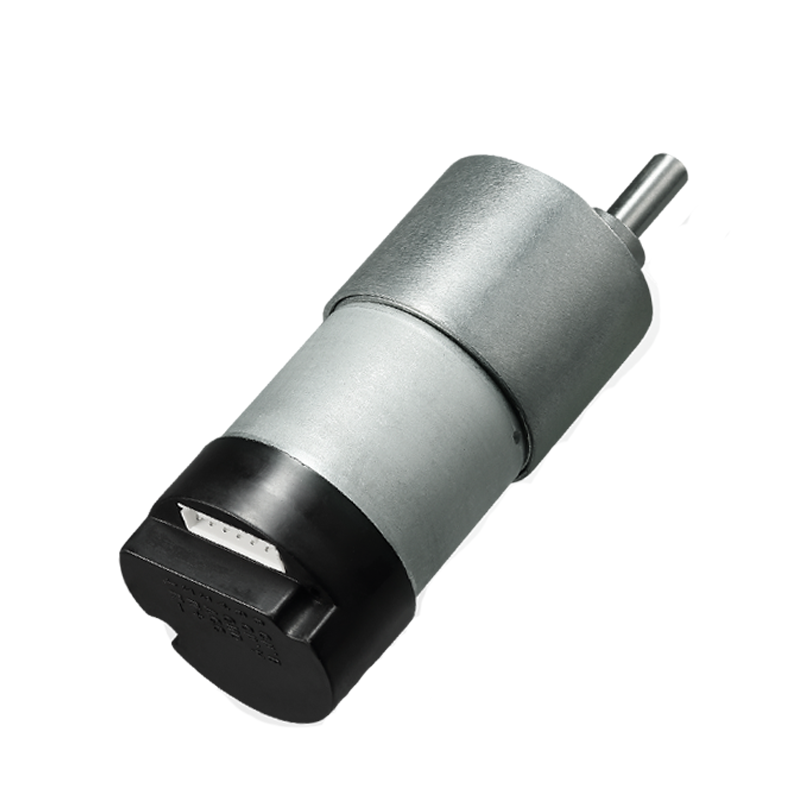

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder

1 / 3

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder

Send Inquiry

Product Description

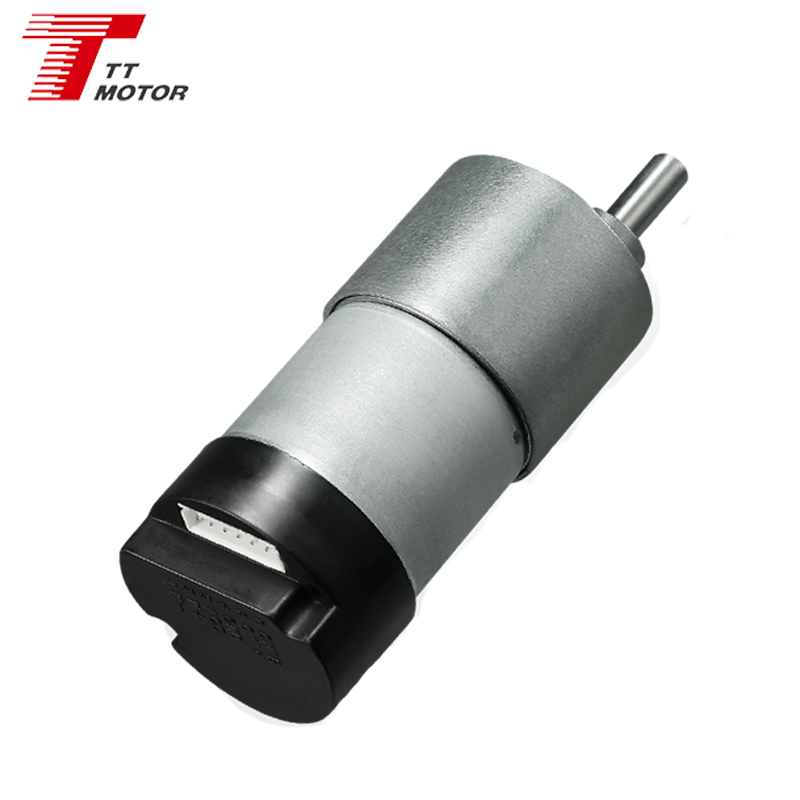

GM37-555PM-EN 37mm High Quality DC Gear Motor 24V with Encoder

Main Features

37mm Eccentric out shaft gearbox plus 520, 3530, 3527, 5 series motor and TEC3650 & 3640 brushless motor
Small size DC gear motor with low speed and big torque
37mm gear motor provides 1.0Nm torque and higher reliability
Suitable for small diameter, low noise, and high torque applications
DC Gear motors can match encoder, 11ppr
Reduction ratios: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

Model: Gear Motor GM37-555PM Specifications

Model Details	Rated Voltage	No-load Speed	Rated Speed	Rated Torque	Output Power	Stall Torque
TRS-555PM-1233	12VDC	3300r/min	2800r/min	200g.cm	5.7W	1150g.cm
TRS-555PM-1260	12VDC	6000r/min	5250r/min	290g.cm	16W	2200g.cm
TRS-555PM-2440	24VDC	4000r/min	3150r/min	200g.cm	6.4W	1000g.cm

GM37-555PM-1233-xxx Reduction Ratio Data

Reduction ratio	6	10	19	30	56	90	169	270	506
Length (mm)	19	19	21.5	21.5	24	24	26.5	26.5	29
No-load speed (rpm)	500	300	160	105	57	36	20	12	6.5
Rated speed (rpm)	450	280	150	90	60	31	18	11	6.3
Rated torque (kg.cm)	1.0	1.6	2.7	4.2	6.7	10	10	10	10

GM37-555PM-1260-xxx Reduction Ratio Data

Reduction ratio	6	10	19	30	56	90	169	270	506
No-load speed (rpm)	900	550	300	190	100	65	35	22	12
Rated torque (kg.cm)	1.4	2.3	3.8	6.1	10	10	10	10	10

GM37-555PM-2440-xxx Reduction Ratio Data

Reduction ratio	6	10	19	30	56	90	169	270	506
Rated speed (rpm)	520	315	165	105	56	36	21	14	8
Rated torque (kg.cm)	1.0	1.6	2.7	4.2	6.7	10	10	10	10

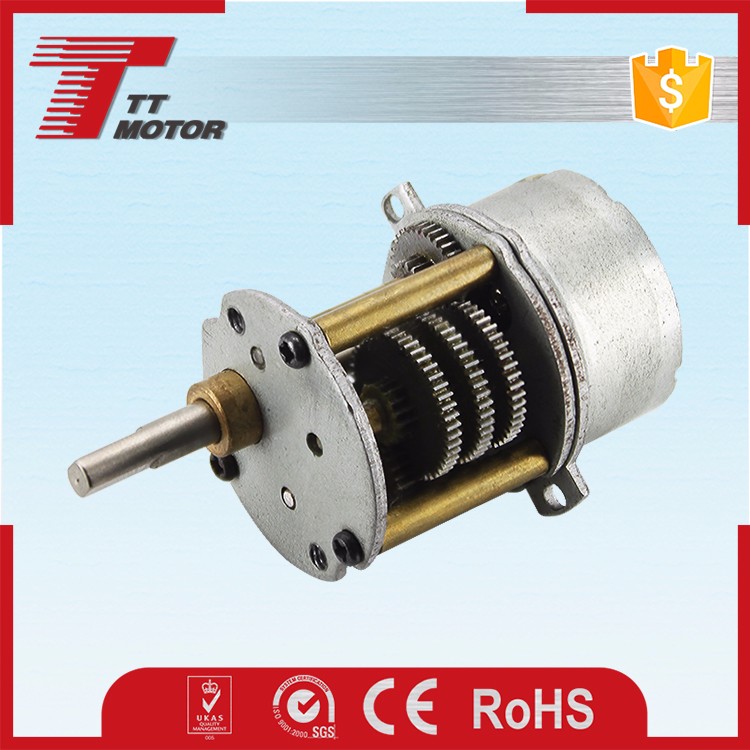

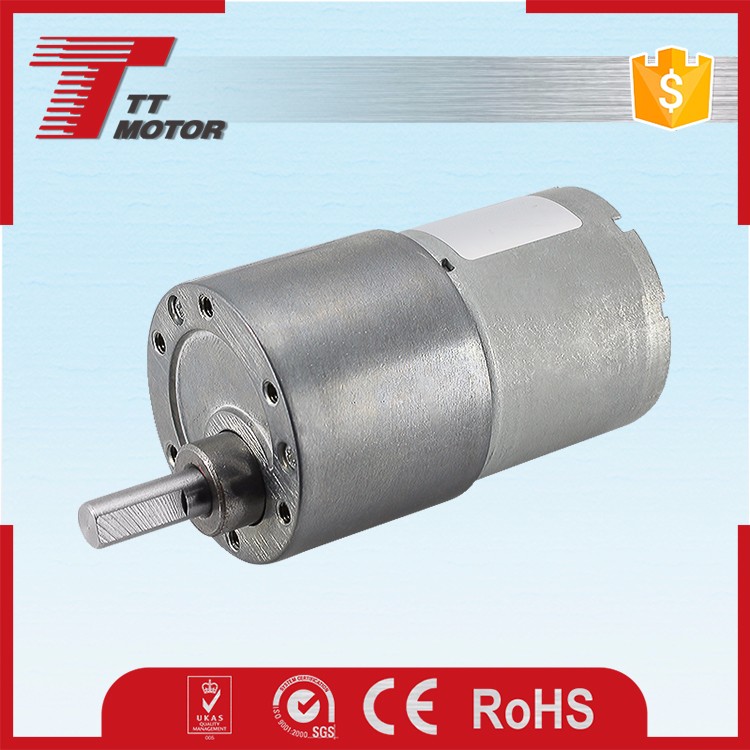

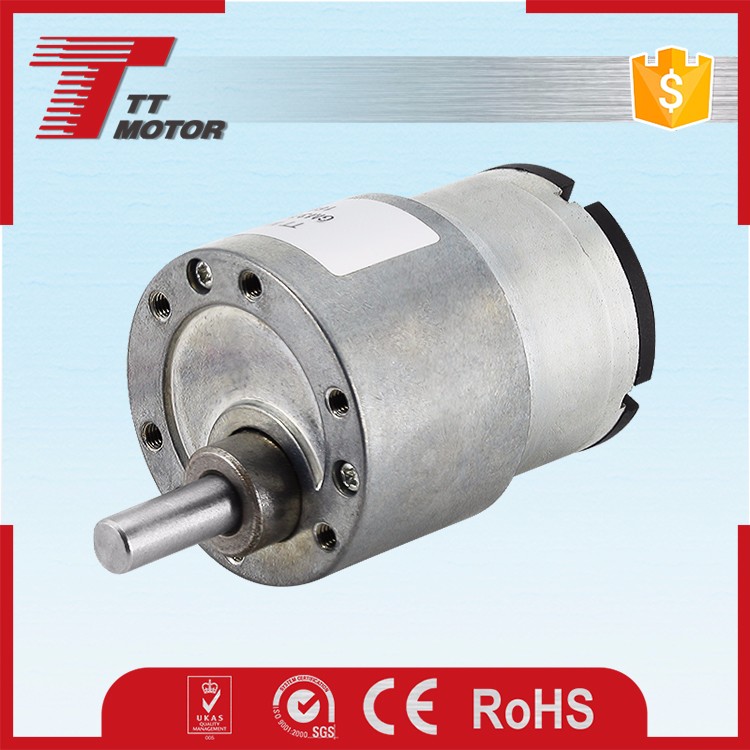

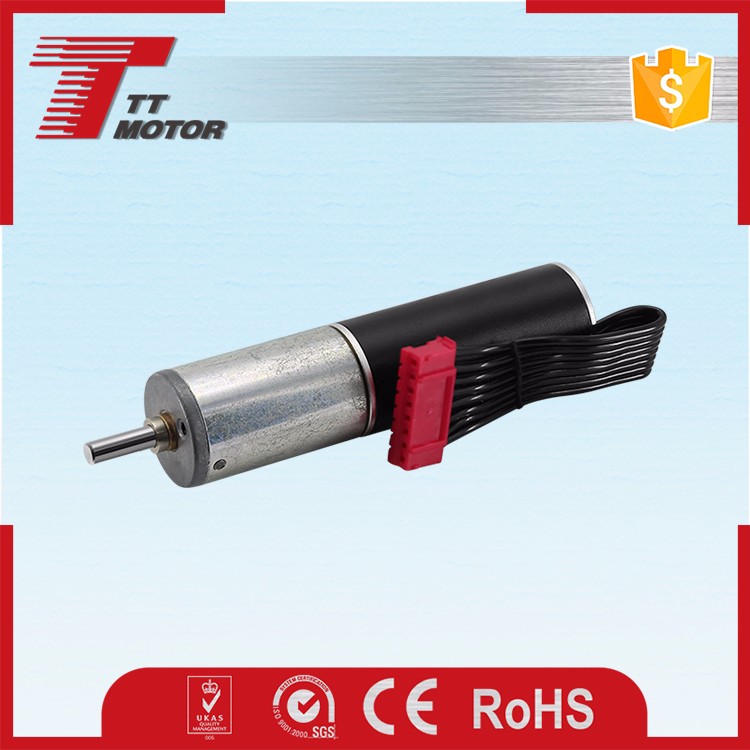

Related Products

Product Application

Our gear motors are versatile and ideal for various high-precision and high-torque applications, including:

Automatic door operators
Automatic energy-saving bath systems
Electrical controlled valves
Oxygen machines and medical equipment
Optical equipment and lighting
Automat cordless power tools

Packing & Delivery

Packaging: Single carton packing, 500 pieces per box.

Shipping Timeframe:

DHL: 3-5 working days
UPS/TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea Freight: Dependent on destination country

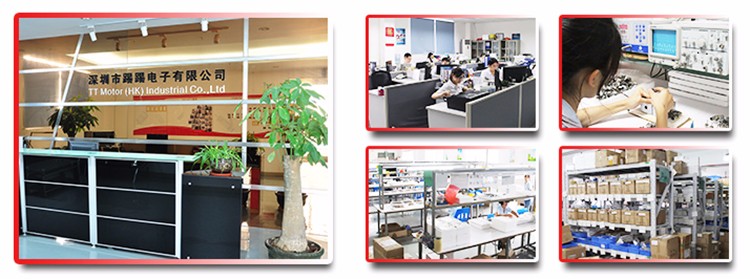

Industry Experience & Certifications
