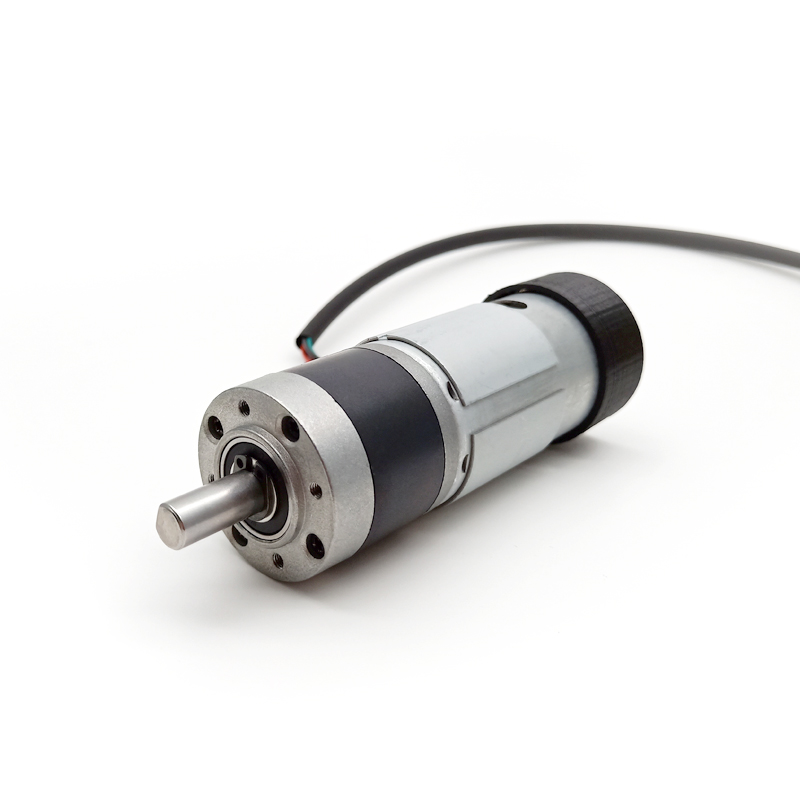

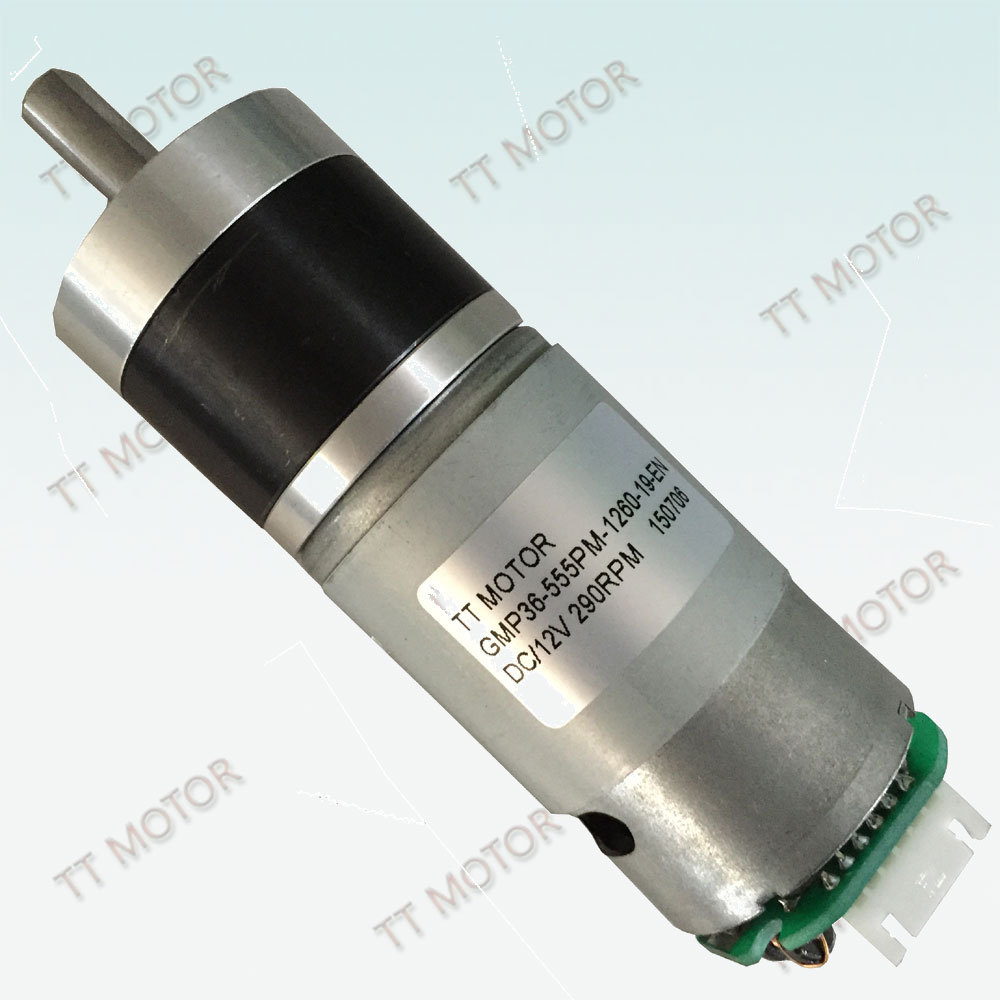

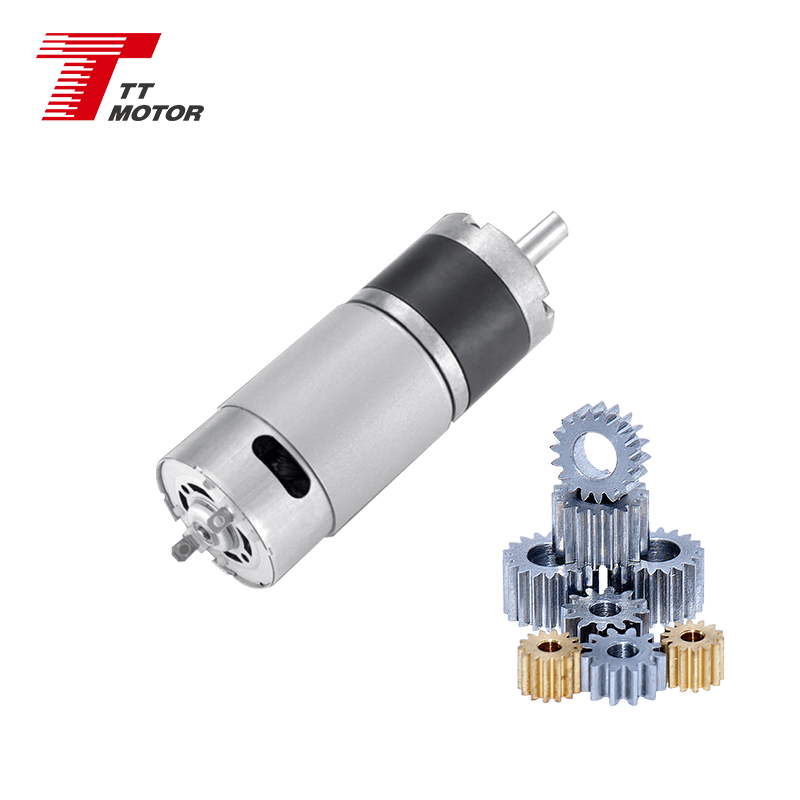

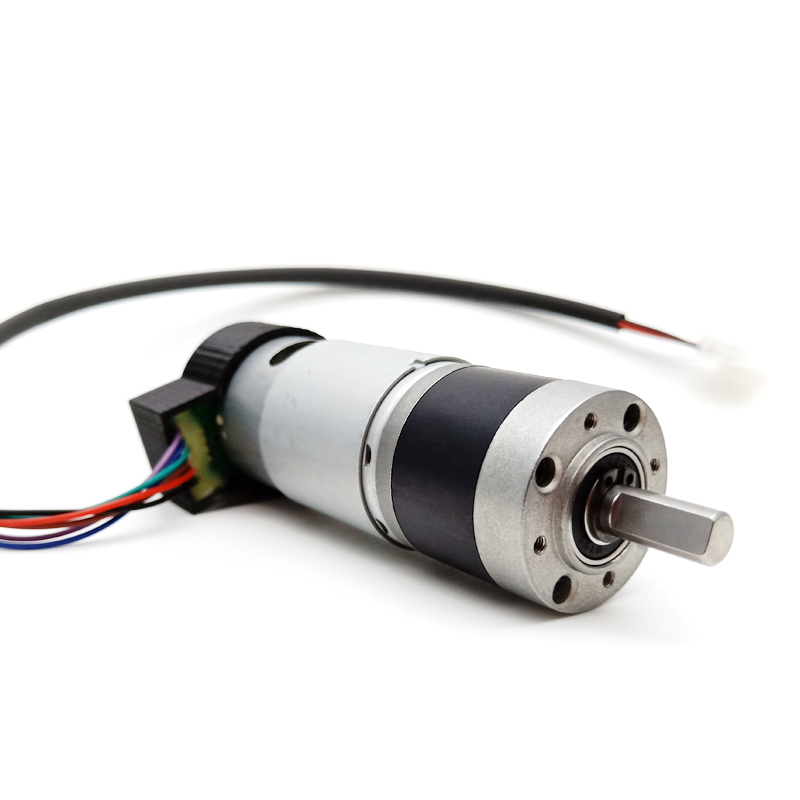

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

1 / 5

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

Send Inquiry

Product Description

GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder

Product Application:
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V dc gear motor, optical equipment, Automat cordless power tool, lighting, etc.

Technical Specifications

Model	Rated Voltage	No-load Speed	Rated Speed	Rated Torque	Output Power
TTRS-555PM-1233	12VDC	3300r/min	2800r/min	200g.cm	5.7W
TTRS-555PM-1260	12VDC	6000r/min	5250r/min	290g.cm	16W
TTRS-555PM-2440	24VDC	2400r/min	3150r/min	200g.cm	6.4W

Main Features

36mm Planetary reducer plus 5 series carbon brush/brushless motor
Small size with low speed and big torque (up to 3.0Nm)
Highly reliable and low noise operation
Compatible with 11pr encoders
Reduction ratios: 4 to 720 options available

Extensive Applications

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers/Scanners
Camera & Optical	Video	Cameras	Projectors	-
Lawn & Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Quality & Service

Specializing in micro motors, gear motors and respective parts. Our products are widely used in entertainment systems, automobiles, home and industrial appliances. We emphasize dependability and long-lasting quality, backed by years of industry experience. We aim to continue as a pioneer by providing excellent quality, competitive pricing, and on-time delivery.

Packing & Delivery

Shipping Estimates:
• DHL: 3-5 working days
• UPS/TNT: 5-7 working days
• FedEx: 7-9 working days
• EMS: 12-15 working days
• Sea Freight: Depends on destination country

Frequently Asked Questions

Q: How to place an order? A: Send us an inquiry, receive our quotation, negotiate details, confirm samples, sign the contract/deposit, and proceed to mass production and delivery.

Q: Are samples available for testing? A: Yes, samples are available. Please contact us for details. Sample fees are typically refunded upon placing a formal mass order.

Q: Which shipping methods do you support? A: We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other methods can be arranged upon request.

Q: What is the typical lead time for production? A: Delivery time depends on the quantity ordered, usually ranging from 15 to 25 working days.

Q: How do I confirm payment? A: We accept T/T and PayPal. A 30-50% deposit is standard, with the balance paid before shipping.

Q: What should I do if my package has missing products? A: Please contact our support team immediately. We will verify your order contents and resolve any issues promptly.
