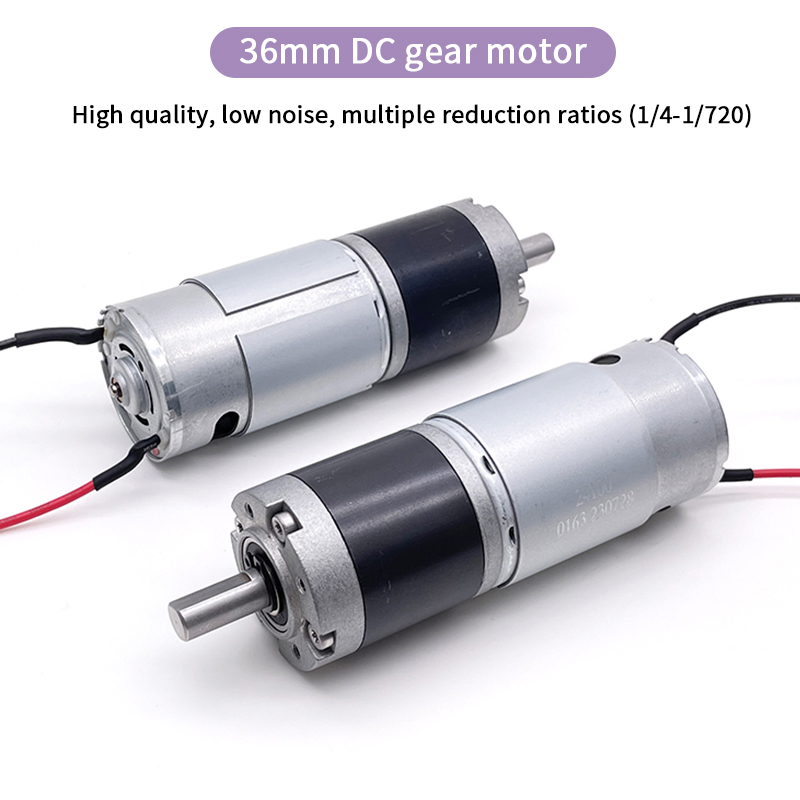

GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder

1 / 5

GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder

Send Inquiry

Product Description

GMP36-555PM-EN 12V/24V Electric DC Geared Motor with Encoder

⚡ Main Features

36mm Planetary reducer combined with 5-series carbon brush motor or brushless motor options.
Compact DC gear motor design featuring low speed and high torque output.
Robust 36mm gearbox providing up to 3.0Nm torque for high reliability.
Ideal for applications requiring small diameters, low noise, and significant torque.

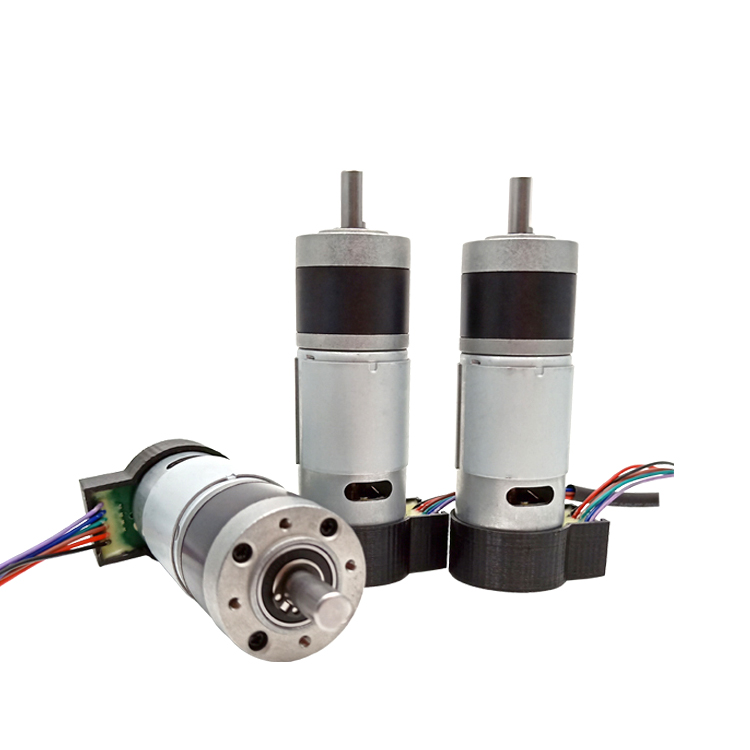

Equipped with an 11ppr encoder for precise control.
Wide range of reduction ratios: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720.

📋 Technical Specifications

Model	Rated Voltage	No-load Speed	Rated Torque	Output Power	Stall Current
TTRS-555PM-1233	12VDC	3300 r/min	200 g.cm	5.7W	5.5A
TTRS-555PM-1260	12VDC	6000 r/min	290 g.cm	16W	15.0A
TTRS-555PM-2440	24VDC	2400 r/min	200 g.cm	6.4W	2.7A

Model: GMP36-555PM-1233-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load (rpm)	750	160	60	32	23	17	12	9	6
Rated Torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30

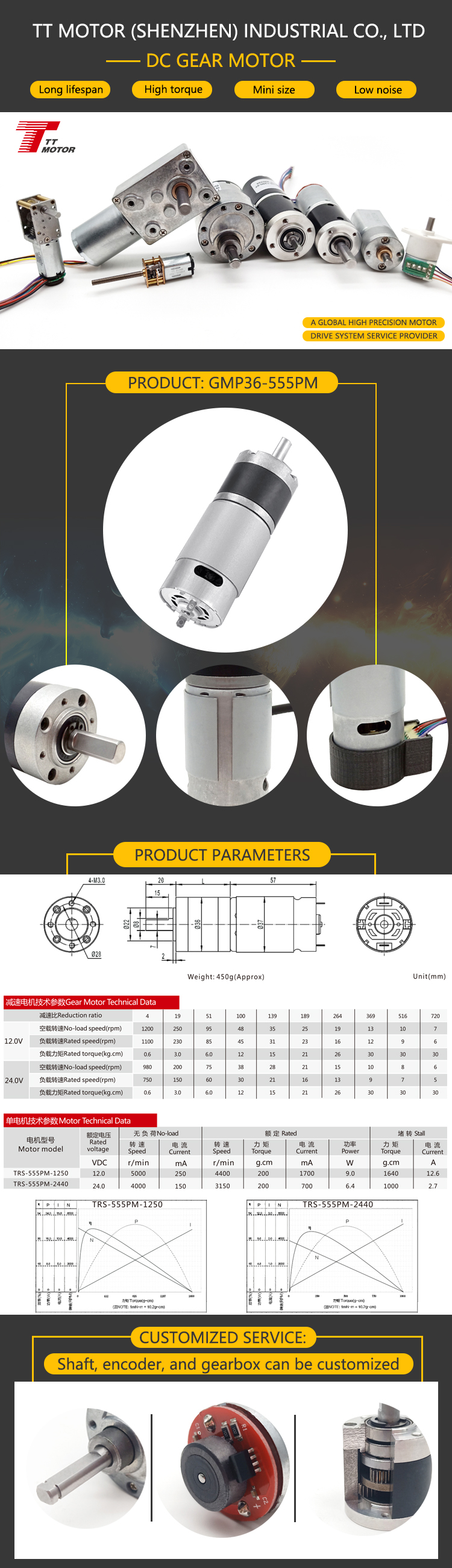

📸 Product Display

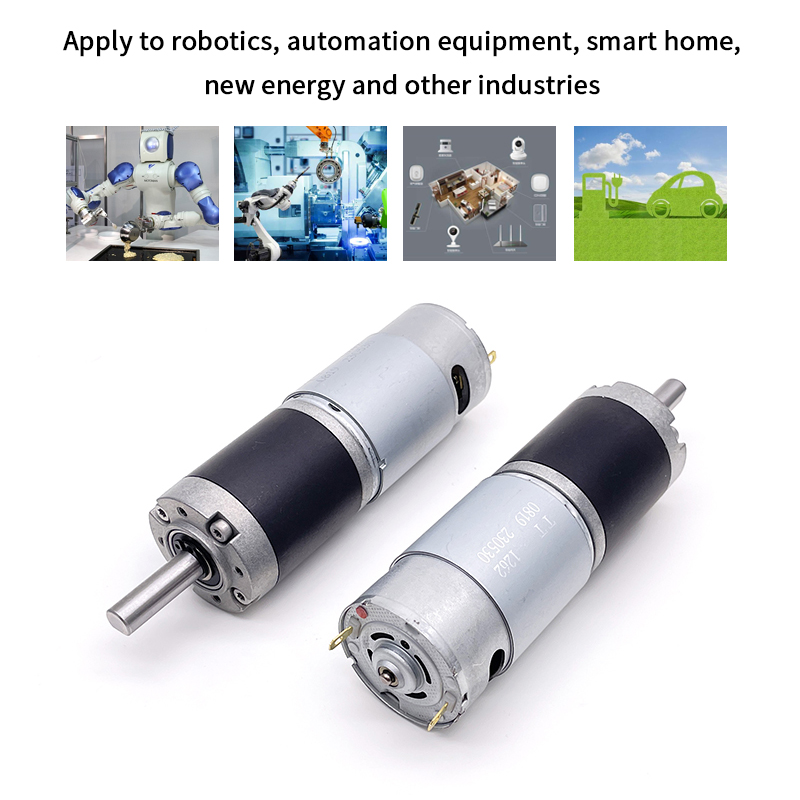

🚀 Product Application

Our motors are widely utilized across various high-precision industries:

Category	Typical Applications
Automation	Automatic door operators, Energy-saving baths, Electrical valves, Electric curtains.
Robotics & Tools	Robots, Grass cutters, Lawn mowers, Snow blowers.
Business Machines	Vending Machines, Printers, ATM, Copiers and Scanners.
Medical & Optical	Oxygen machines, Medical service equipment, Cameras, Projectors.

🏅 Certifications & Quality

Standardized production and quality control with certifications including ISO9001, SGS, and National High-tech Enterprise status.

📦 Packing & Delivery

We provide standard professional packing to ensure safe transit.

Shipping Method	Estimated Time
DHL	3-5 working days
UPS / TNT	5-7 working days
FedEx	7-9 working days
EMS	12-15 working days

❓ Frequently Asked Questions

Q: How can I place an order?

A: Send us an inquiry to receive a quotation. Once details are negotiated and samples are confirmed, we will proceed with the contract, production, and delivery upon balance payment.

Q: Are samples available before bulk orders?

A: Yes, samples are available. Please contact us for details. The sample fee is typically refunded once a formal mass production order is placed.

Q: Which shipping methods do you support?

A: We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other shipping methods can be arranged upon request.

Q: What is the typical lead time for production?

A: Delivery time depends on the order quantity, but it usually takes between 15 to 25 working days for production.

Q: What are the accepted payment methods?

A: We accept T/T and PayPal. Other payment methods may be accepted after prior consultation. A 30-50% deposit is required, with the balance paid before shipping.

Q: What should I do if my package has missing products?

A: Please contact our support team immediately. We will verify your order against the package contents and resolve any discrepancies as quickly as possible.
